SOUTH VIETNAM
COASTAL FORCES
ATC assault craft (1969)





1970

Ships


Names Builders Commissioned Losses Transfers Discarding

100 boats, presumably HQ1200-...

USA: 100 boats

1969: 100 boats

unknown

100 boats (to North Vietnam 1975)

none

unknown



Technical data


Displacement standard, t
Displacement full, t

66

Length, m

20.0

Breadth, m

5.34

Draught, m

0.99

No of shafts

2

Machinery

2 diesels

Power, h. p.
Max speed, kts

8.5

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

(1 - 2) x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90, (0 - 4) x 1 - 7.6/90, 2 x 1 - 40/10 M18 grenade launchers

Military loadtroops
Electronic equipmentnone
Complement

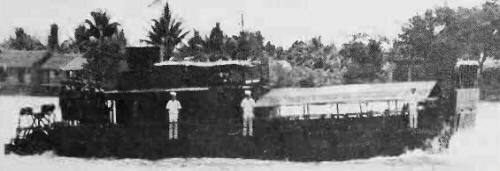

Graphics


1970
1970


Project history

Armoured troop carriers (ATC). Some were fitted with steel helicopter platforms for evacuation of wounded.

Modernizations

None.

Naval service

No significant events.
