MARISCAL SUCRE frigates (1980-1982)





Mariscal Sucre 1980

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Mariscal Sucre F21   CNR, Riva Trigoso, Italy 19/11/1976 28/9/1978 10/5/1980 in service (2019)
Almirante Brión F22   CNR, Riva Trigoso, Italy 6/1977 22/2/1979 7/3/1981 in service (2019)
General Urdaneta F23   CNR, Ancona, Italy 23/1/1978 23/3/1979 8/8/1981 in service (2019)
General Soublette F24   CNR, Riva Trigoso, Italy 26/8/1978 4/1/1980 4/12/1981 in service (2019)
General Salóm F25   CNR, Ancona, Italy 7/11/1978 13/1/1980 3/4/1982 in service (2019)
Almirante García (ex-General José Felix Ribas) F26   CNR, Riva Trigoso, Italy 21/8/1979 4/10/1980 30/7/1982 in service (2019)


Technical data


Displacement standard, t

2200

Displacement full, t

2525

Length, m

106.0 pp 113.7 oa

Breadth, m

12.0

Draught, m

3.84 hull

No of shafts

2

Machinery

CODOG: 2 General Electric-Fiat LM-2500 gas turbines / 2 GMT A230-2M diesels

Power, h. p.

50000 / 7900

Max speed, kts

35

Fuel, t

diesel / gas turbine oil

Endurance, nm(kts)

5500(16)

Armament

8 x 1 Teseo Mk 2 SSM (8 Otomat Mk 2), 1 x 8 Albatros SAM (8 Aspide), 1 x 1 - 127/54 OTO-Melara Compact, 2 x 2 - 40/70 Breda-Bofors Compact Twin 40, 2 x 3 - 324 ILAS-3 TT (A-244S), 1 helicopter (AB-212ASW)

Electronic equipment

3RM-20, RAN-10S, RAN-11X, 2x RTN-10X, 2x RTN-20X radar, Edo 610E sonar, Lambda-F ECM suite, 2x SCLAR decoy LR, IPN-10 CCS

Complement

185



Standard scale images

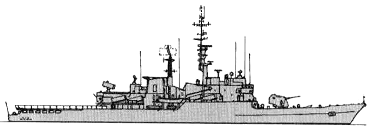

<i>Mariscal Sucre </i>2010
Mariscal Sucre 2010

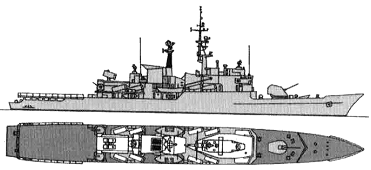

<i>General Urdaneta </i>1990
General Urdaneta 1990


Graphics

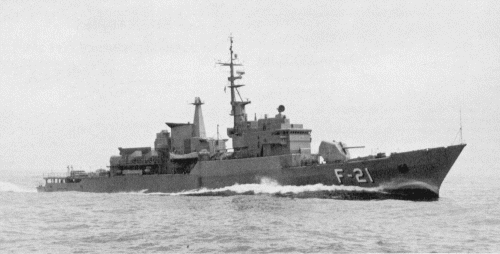

<i>Mariscal Sucre </i>1980
Mariscal Sucre 1980

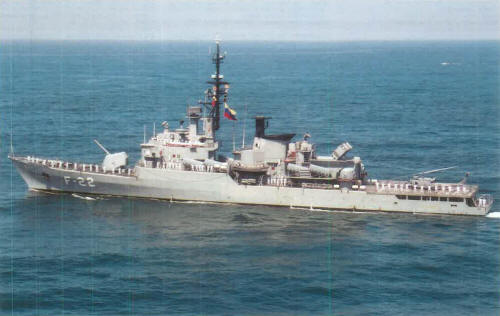

<i>Almirante Brión </i>2007
Almirante Brión 2007


Ship project history


Very similar to standard Italian Lupo class, differing by fixed hangar and no reloads for SAM.

Modernizations


2002, Mariscal Sucre, Almirante Brión: 2 GMT A230-2M diesels were replaced by 2 MTU 20V1163 diesels (19800hp); - RAN-10S radar, Edo 610E sonar, Lambda-F ECM suite, IPN-10 CCS; + EL/M-2238 radar, 21HS-7 sonar, NS-9003, NS-9005 ECM suites, ENTCS 2000 CCS, complement becomes 131

2003, General Urdaneta; 2004, General Soublette: - Edo 610E sonar; + 21HS-7 sonar

2017, Almirante García: - 2 x 3 - 324 TT

Naval service


No significant events.
