RÍO APURE patrol boats (1954-1956)
1978
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Río Apure Río Arauca Río Cabriales Río Caroni Río Guárico Río Negro Río Neveri Río Tuy |
C N de l'Esterel, Cannes, France: Río Apure; Río Arauca; Río Cabriales; Río Caroni; Río Guárico; Río Negro; Río Neveri; Río Tuy |
1954-1956: Río Apure; Río Arauca; Río Cabriales; Río Caroni; Río Guárico; Río Negro; Río Neveri; Río Tuy |
none |
none |
1982-1983: Río Apure; Río Arauca; Río Cabriales; Río Caroni; Río Guárico; Río Negro; Río Neveri; Río Tux |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 38 |
| Length, m | 24.5 |
| Breadth, m | 4.70 |
| Draught, m | 1.30 |
| No of shafts | 2 |
| Machinery | 2 Mercedes diesels |
| Power, h. p. | 1500 |
| Max speed, kts | 27 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) |
|
| Armament | light arms |
| Electronic equipment | none |
| Complement | 15 |
Graphics

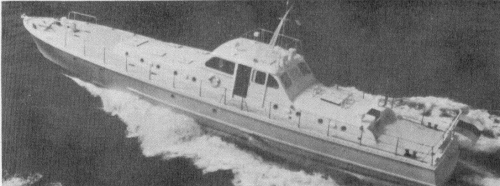

1978
Project history
Small coastal patrol craft.
Modernizations
None.
Naval service
No significant events.
