FEDERACIÓN fast attack craft (missile) (1975)

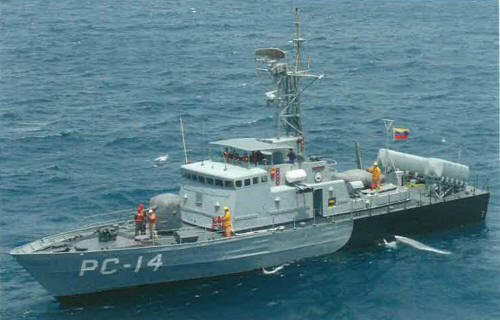

Libertad 2009

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Federación P12, 1978- PC12   Vosper Thornycroft, Portsmouth, UK 8/1973 26/2/1974 25/3/1975 in service (2019)
Libertad P14, 1978- PC14   Vosper Thornycroft, Portsmouth, UK 9/1973 5/3/1974 12/6/1975 in service (2019)
Victoria P16, 1978- PC16   Vosper Thornycroft, Portsmouth, UK 3/1973 3/9/1974 22/9/1975 in service (2019)


Technical data


Displacement standard, t

150 trials

Displacement full, t

170

Length, m

33.5 pp 36.9 oa

Breadth, m

7.16

Draught, m

1.80 hull

No of shafts

2

Machinery

2 MTU MD 16V538 TB90 diesels

Power, h. p.

7080

Max speed, kts

31

Fuel, t

diesel oil 24

Endurance, nm(kts)

1350(16)

Armament

2 x 1 Otomat SSM (2 Otomat), 1 x 1 - 40/70 Bofors 564, 2 x 1 - 12.7/90

Electronic equipmentSPQ-2D, Decca radars
Complement

20



Standard scale images


<i>Federación</i> 1990
Federación 1990


Graphics


<i>Libertad </i>2009
Libertad 2009


Ship project history


Vosper Thomycroft designed attack craft in gun and missile armed variants.

Modernizations


1989, all: - 1 x 1 - 40/70; + 1 x 1 - 30/82 OTO-Breda 559, Medusa Mk 3 e/o director

Naval service


All boats were transferred in 1983 to Coast Guard but later returned to Navy.
