X1 midget submarine (1955)





official model of X1

Ships


Names Builders Commissioned Losses Transfers Discarding

X1

Fairchild, Oyster Bay: X1

10/1955: X1

none

none

2.1973: X1


Technical data


Displacement standard, t
Displacement normal, t

31 / 36

Length, m

15.0

Breadth, m

2.10

Draught, m

1.90

No of shafts

1

Machinery

1 diesel / 1 electric motor

Power, h. p.

30

Max speed, kts

15 / 12

Fuel, t

diesel oil

Endurance, nm(kts)500
Armament4 swimmers
Electronic equipment

none

Complement

4

Diving depth operational, m





Standard scale images


<i>X1 </i>1955
X1 1955


Graphics

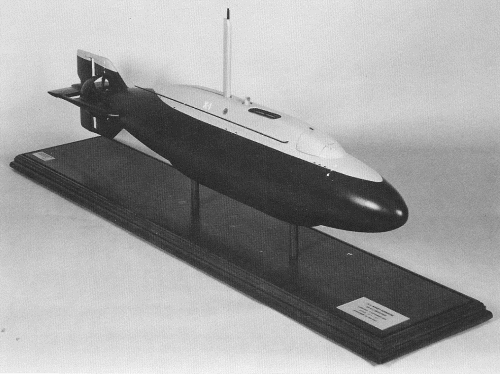

official model of <i>X1</i>
official model of X1


Project history

This project was inspired indirectly by the British X-Craft of the Second World War, one of which visited the USA specifically to provide design references. The original propulsion paint used hydrogen peroxide, this craft being the sole US fruit of the postwar Allied peroxide programme. She was built in 1954-55, but suffered an internal explosion in February 1958, which broke her into three pieces. Rebuilt at Philadelphia, she rejoined the Navy 14.12.1960 as a special test craft at NSRDC, painted orange.

Modernizations

None.

Naval service

No significant events.
