SARGO (1939) and SEADRAGON (1939) submarines

SARGO

Sargo 1940

Sargo 1944

No Name Yard No Builder Laid down Launched Comm Fate
SS188 Sargo 29 Electric Boat, Groton 5/1937 6/6/1938 2/1939 stricken 7/1946
SS189 Saury 30 Electric Boat, Groton 6/1937 20/8/1938 4/1939 stricken 7/1946
SS190 Spearfish 31 Electric Boat, Groton 9/1937 29/10/1938 7/1939 stricken 7/1946
SS191 Sculpin   Portsmouth N Yd 9/1937 27/7/1938 1/1939 sunk 18/11/1943
SS192 Squalus, 5/1940- Sailfish   Portsmouth N Yd 10/1937 14/9/1939 3/1939 stricken 4/1948

SEADRAGON

No Name Yard No Builder Laid down Launched Comm Fate
SS193 Swordfish   Mare Island N Yd, Vallejo 10/1937 1/4/1939 7/1939 lost 1/1945
SS194 Seadragon 33 Electric Boat, Groton 4/1938 21/4/1939 10/1939 stricken 4/1948
SS195 Sealion 34 Electric Boat, Groton 6/1938 25/5/1939 11/1939 sunk 25/12/1941
SS196 Searaven   Portsmouth N Yd 8/1938 21/6/1939 10/1939 sunk as target 11/9/1948
SS197 Seawolf   Portsmouth N Yd 9/1938 15/8/1939 12/1939 sunk 3/10/1944



Displacement standard, t



Displacement normal, t

1450 / 2198

Length, m

92.2 wl 94.6 oa

Breadth, m

8.18

Draught, m

5.08

No of shafts

2

Machinery

SS188 - 191: 4 Hoover, Owens, Rentschler diesels / 4 electric motors

SS192: 4 General Electric diesels / 4 electric motors

SS193 - 195, 197: 4 General Electric diesel-generators / 4 electric motors

SS196: 4 Hoover, Owens, Rentschler diesel-generators / 4 electric motors

Power, h. p.

SS188 - 192: 5500 / 2740

SS193 - 197: 5200 / 2740

Max speed, kts

20 / 8.75

Fuel, t

diesel oil 428

Endurance, nm (kts) 11000 (10) / 96 (2)

Armament

1 x 1 - 76/50 Mk 17/18, 2 x 1 - 12.7/90, 8 - 533 TT (24 torpedoes or 32 mines, 4 bow, 4 stern)

Sensors

QCD, JK sonars

Complement

59

Diving depth operational, m

75



Ship project history: Salmon class submarines represented increased version of class with more powerful machinery, two additional stern TTs (8 at all) and increased to 24 torpedo stowage. In their construction it have returned to diesels with mechanical shaft drive (hydraulic more precisely, through a special clutch). The similar decision was a tribute to the fears advanced by a number of experts, about insufficient damage tolerance of electrical transmission which could be easily incapacitated at any power cable damage. Double-hulled, built under the FY1936 program.

Under FY1937 and FY1938 programs 10 more boats of very close Sargo class were built. They at the expense of small increase in a stock of fuel had enlarged endurance. Four boats of the FY1938 program (SS194-197) often were outlined into separate Seadragon sub-class. They again had diesel-electrical engine, besides, almost on 30% larger capacity of batteries allowed to be underway 48hrs with 2kts speed in submerged position.

Modernizations: 1942 - 1943, all survived: CT was rebuilt; - 1 x 1 - 76/50, 2 x 1 - 12.7/90; + 1 x 1 - 102/50 Mk 9 or 1 x 1 - 127/25 Mk 17, 2 x 1 - 20/70 Mk 4, SD, SJ radars

1/1946, SS188-190, 192, 194, 196: 8 - 533 TT (4 bow, 4 stern, 24), 1 x 1 - 102/50 Mk 12 or 1 x 1 - 127/25 Mk 40, 2 x 1 - 20/70 Mk 10, SD, SJ radars, QCD sonar

Naval service: Squalus foundered 23/5/1939 during trials, salvaged and commissioned in May, 1940 under new name.

Sealion 10/12/1941 was badly damaged by Japanese aircraft and 25/12/1941 scuttled at Cavite (Philippines). Sculpin 18/11/1943 was scuttled N of Truk being badly damaged by Japanese destroyer Yamagumo. Seawolf 3/10/1944 was erroneously sunk by destroyer escort Richard M. Rowel Swordfish was lost by unknown cause in Pacific in January, 1945.

Searaven 11/9/1948 was sunk as target.

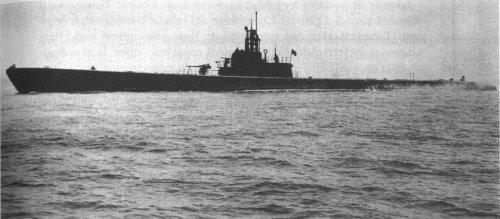

Sculpin 1943
