URUGUAY
AMPHIBIOUS CRAFT
LD45 landing craft (1980-1982)
46 2011
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
LD45, 46, 1980s- 45, 46 |
SCRA, Punta Lobos, Montevideo: LD45, 46 | 1980: LD45 1982: LD46 |
none |
none |
2017-18: LD45 in service (2019): LD46 |
Technical data
| Displacement standard, t | 12 |
|---|---|
| Displacement full, t | 15 |
| Length, m | 14.1 |
| Breadth, m | 3.50 |
| Draught, m | 0.80 |
| No of shafts | 1 |
| Machinery | 1 General Motors Detroit Diesel 4-71 diesel |
| Power, h. p. | 115 |
| Max speed, kts | 6 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 580(9) |
| Armament | none |
| Military load | 3 t cargo |
| Complement | 5 |

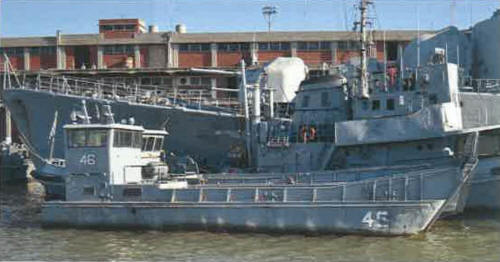

Graphics
46 2011
Project history
Landing craft, vehicle and personnel.
Modernizations
None.
Naval service
None.
