Uruguay 1980

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Uruguay (ex-Baron)	DE1		Federal, Newark, USA	11.1942	9.5.1943	7/1943 // 5.1952	deleted 1990
Artigas (ex-Bronstein)	DE2		Federal, Newark, USA	8.1943	14.11.1943	12/1943 // 3.1952	deleted 1988

Technical data

Displacement standard, t	1253
Displacement full, t	1602
Length, m	91.4 wl 93.3 oa
Breadth, m	11.2
Draught, m	3.20 full load
No of shafts	2
Machinery	4 General Motors diesel-generators, 2 electric motors
Power, h. p.	6000
Max speed, kts	21
Fuel, t	diesel oil 320
Endurance, nm(kts)	11500 (11)
Armament	3 x 1 - 76/50 Mk 22, 1 x 2 - 40/60 Mk 1, 8 x 1 - 20/70 Mk 10, 1 x 3 - 533 TT, 1 x 24 - 178 Hedgehog Mk 10 ASWRL, 8 DCT, 2 DCR (120)
Electronic equipment	SC, SF or SL or SU radars, QGA sonar
Complement	186

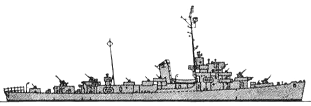

Standard scale images

Graphics

Project history

Former USN Cannon class destroyer escorts.

Modernizations

late 1960s, both: - 4 x 1 - 20/70, 1 x 3 - 533 TT, SC, SF or SL or SU radars, QGA sonar; + SPS-5, SPS-6C radars, SQS-4 sonar.

early 1980s, both: - 1 x 1 - 20/70, 8 DCT, 2 DCR, SQS-4 sonar

early 1980s, Uruguay: - SPS-6C radar

Naval service

No significant events.
