15 DE NOVIEMBRE large patrol craft (1981)
15 de Noviembre 2001
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Quince de Noviembre (15 de Noviembre) | 5 | CMN, Cherbourg, France | 6.12.1979 | 16.10.1980 | 27.2.1981 | stricken 2013-14 | |
| Veinticinco de Agosto (25 de Agosto) | 6 | CMN, Cherbourg, France | 6.2.1980 | 11.112/1980 | 25.3.1981 | stricken 2013-14 | |
| Comodoro Coé | 7 | CMN, Cherbourg, France | 16.5.1980 | 27.1.1981 | 25.3.1981 | stricken 2010 |
Technical data
| Displacement standard, t | 166 |
|---|---|
| Displacement full, t | 190 |
| Length, m | 38.0 pp 41.2 oa |
| Breadth, m | 6.80 |
| Draught, m | 1.56 hull 2.50 max |
| No of shafts | 2 |
| Machinery | 2 MTU 12V538 TB91 diesels |
| Power, h. p. | 4600 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2400(15) |
| Armament | 1 x 1 - 40/70 Bofors 564 |
| Electronic equipment | Decca TM1226C, Decca 1229 radars, Panda e/o system |
| Complement | 27 |
Graphics

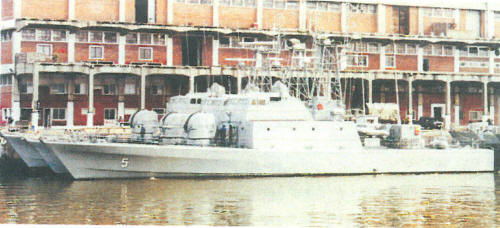

15 de Noviembre 2001
Project history
French 'Vigilante' type large patrol craft. Planned twin 20mm Oerlikon aft was never mounted.
Modernizations
None.
Naval service
No significant events.
