ROYAL NAVY - UNITED KINGDOM

SUBMARINES

"T" 1941 and 1942 Programs" submarines (TUDOR) (1943 - 1946)

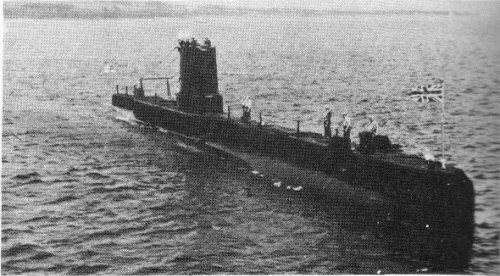

Thule 1945

Name No Builder Laid down Launched Comp Fate
riveted pressure hull
Talent P322 Vickers-Armstrong, Barrow 3/1943 17/7/1943 ---// 12/1943 to Netherlands at completion 12/1943 (Zwaardvis)
Telemachus P321 - S 21 Vickers-Armstrong, Barrow 8/1942 19/6/1943 10/1943 BU 8/1961
Terrapin P323 Vickers-Armstrong, Barrow 10/1942 31/8/1943 1/1944 damaged 19/5/1945, never repaired
Thorough P324 - S 24 Vickers-Armstrong, Barrow 10/1942 30/10/1943 2/1944 BU 6/1961
Thule P325 - S 25 Devonport DYd 9/1941 22/10/1942 5/1944 BU 9/1962
Tireless P327 - S 77 Portsmouth DYd 10/1941 19/3/1943 4/1945 BU 11/1968
Tradewind P329 - S 29 Chatham DYd 2/1942 11/12/1942 10/1943 BU 12/1955
Trenchant P331 - S 31 Chatham DYd 5/1942 24/3/1943 10/1944 BU 7/1963
Tudor P326 - S 126 Devonport DYd 9/1941 23/9/1942 1/1944 BU 7/1963
welded pressure hull
Taciturn P334 - S 34 Vickers-Armstrong, Barrow 3/1943 7/6/1944 10/1944 BU 8/1971
Talent (ex-Tasman) P337 - S 37 Vickers-Armstrong, Barrow 3/1944 13/2/1945 7/1945 BU 2/1970
Tapir P335 - S 35 Vickers-Armstrong, Barrow 3/1943 21/8/1944 12/1944 to Netherlands 6/1948 - 6/1953 (Zeehond), BU 2/1966
Tarn P336 Vickers-Armstrong, Barrow 6/1943 29/11/1944 ---// 4/1945 to Netherlands before completion 3/1945 (Tijgerhaai)
Teredo P338 - S 38 Vickers-Armstrong, Barrow 4/1944 27/4/1945 4/1946 BU 6/1965
Tiptoe P332 - S 32 Vickers-Armstrong, Barrow 11/1942 25/2/1944 6/1944 BU 4/1971
Token P328 - S 28 Portsmouth DYd 11/1941 19/3/1943 12/1945 BU 3/1970
Trump P333 - S 33 Vickers-Armstrong, Barrow 12/1942 25/3/1944 7/1944 BU 8/1971
Tabard P342 - S 42 Scotts, Greenock 9/1944 21/11/1945 6/1946 training hulk 1969
Talent P343 Scotts, Greenock 1943 --- --- cancelled
Theban P341 Vickers-Armstrong, Barrow 1943 --- --- cancelled
Thermopylae P355 - S 55 Chatham DYd 10/1943 27/6/1945 12/1945 BU 7/1970
Thor P349 Portsmouth DYd 4/1943 18/4/1944 --- cancelled
Threat P344 Vickers-Armstrong, Barrow 1943 --- --- cancelled
Tiara P351 Portsmouth DYd 4/1943 18/4/1944 --- cancelled
Totem P352 - S 52 Devonport DYd 10/1942 28/9/1943 1/1945 to Israel 1964 (Dakar)
Truncheon P353 - S 53 Devonport DYd 11/1942 22/2/1944 5/1945 to Israel 1/1968 (Dolphin)
Turpin P354 - S 54 Chatham DYd 5/1943 5/8/1944 12/1944 to Israel 1965 (Leviathan)





Displacement standard, t

1090

Displacement normal, t

1319 - 1327 / 1571

Length, m

83.3 - 83.4

Breadth, m

8.10

Draught, m

4.47 - 4.52

No of shafts

2

Machinery

2 Vickers diesels / 2 electric motors

Thule, Tireless, Tradewind, Token, Trenchant, Tudor, Thermopylae, Totem, Truncheon, Turpin: 2 Admiralty diesels / 2 electric motors

Power, h. p.

2500 / 1450

Max speed, kn

15.25 / 9

Fuel, t

diesel oil 129 - 132, maximally 215 - 218

Tarn: diesel oil 129 - 132

Endurance, nm(kts)

11000(10) /

Tarn: 8000(10) /

Armament

11 - 533 TT (6 bow, 2 ext bow, 3 ext stern, 17 torpedoes or 12 2 mines), 1 x 1 - 102/40 QF Mk XII, 1 x 1 - 20/70 Oerlikon Mk II/IV, 3 x 1 - 12.7/62

Talent (ex-Tasman), Tapir, Tarn, Thermopylae: 11 - 533 TT (6 bow, 2 ext bow, 3 ext stern, 17 torpedoes or 12 M2 mines), 1 x 1 - 102/40 QF Mk XXII, 1 x 1 - 20/70 Oerlikon Mk II/IV, 3 x 1 - 12.7/62

Teredo, Tabard: 11 - 533 TT (6 bow, 2 ext bow, 3 ext stern, 17 torpedoes or 12 M2 mines), 1 x 1 - 102/40 S Mk I, 1 x 1 - 20/70 Mk VII S/M

Sensors

type 267W radar, sonars

Complement

61

Diving depth operational, m

95

Taciturn, Talent (ex-Tasman), Tapir, Tarn, Teredo, Tiptoe, Trump, Tabard, Thermopylae, Totem, Truncheon, Turpin, Talent (Scotts), Theban, Threat: 110

Ship project history: Repetition of boats of "" class of 1940 program with increased endurance. Ballast tanks, adopted to carry an additional stock of fuel were welded. Full displacement with maximal fuel stowage was 1440t. Ships of 2nd group had fulfilled welded pressure hull at the expense of what an operational diving depth was increased to 105m.

Order for 5 more subs was cancelled at the end of war.

Modernizations:

1/1946, Telemachus, Thorough, Thule, Tireless, Tradewind, Trenchant, Tudor, Taciturn, Talent, Tapir, Tiptoe, Token, Trump, Thermopylae, Totem, Truncheon, Turpin: 1 x 1 - 102/40 S Mk I, 1 x 1 - 20/70 Mk IIA S/M, 11 - 533 TT

early 1950s, all survived: - 1 x 1 - 20/70

1951 - 1956, "T Conversion", as follows: Hull and casing were streamlined, all external TT and guns were removed. Submerged power was doubled and battery capacity was increased.

Thermopylae 1953

Name No Reconstructed Yard Fate
Taciturn S34 1950 - 1951 ? BU 8/1971
Thermopylae S55 1951 - 1952 ? BU 7/1970
Turpin S54 1950 - 1951 ? to Israel 1965 (Leviathan)
Totem S52 1952 - 1953 ? to Israel 1964 (Dakar)
Tabard S42 1953 - 1955 ? hulk 1969, BU 1974
Tiptoe S32 ~1951 - ~1956 ? BU 4/1971
Trump S33 1956 ? BU 8/1971
Truncheon S53 1952 ? to Israel 1/1968 (Dolphin)



Displacement standard, t

1261 - 1460

Displacement normal, t

1554 - 1588 / 1734

Length, m

Taciturn, Thermopylae, Turpin, Totem: 86.9 pp 88. oa

Tabard, Tiptoe, Trump, Truncheon: 86.9 pp 89.5 oa

Breadth, m

8.10

Draught, m

4.90 deep load

No of shafts

2

Machinery

4 ASR supercharged diesels / 4 electric motors

Power, h. p.

2800 / 6000

Max speed, kn

14 / 15.4

Fuel, t

diesel oil 200

Armament

6 - 533 TT (4 bow, 2 stern, 20 torpedoes or 12 Mk 2 mines)

Sensors

type 267W radar, type 186, 187, 197 sonars

Complement

68

Diving depth operational, m

110



1949 - 1956, "T Streamline", as follows: additionally, battery capacity was increased.

Talent 1963



Name No Reconstructed Yard Fate
Talent S37 1955 ? BU 2/1970
Token S28 1955 - 1956 ? BU 3/1970
Tireless S77 1949 ? BU 11/1968
Tapir S35 1953 ? BU 2/1966
Teredo S38 1953 ? BU 6/1965



Displacement standard, t

1090

Displacement normal, t

1424 / 1571

Length, m

80.8 pp 83.4 oa

Breadth, m

8.10

Draught, m

4.80 deep load

No of shafts

2

Machinery

2 ASR diesels / 2 electric motors

Power, h. p.

2500 / 1450

Max speed, kn

15.25 / 9.5

Fuel, t

diesel oil 209

Armament

6 - 533 TT (4 bow, 2 stern, 11)

Sensors

type 267W radar, type 186, 187, 197 sonars

Complement

50

Diving depth operational, m

95



Naval service: Terrapin was badly damaged by Japanese DCs 19/5/1945 and was not repaired.

Tireless 1956
