"A" submarines (AMPHION) (16(30), 1945 - 1948)

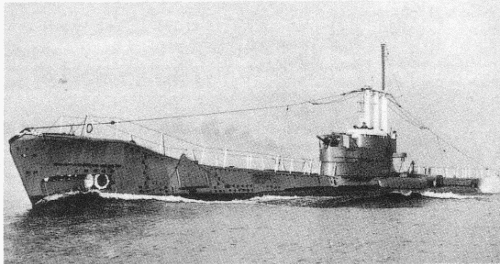

Alderney 1950

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Abelard P451   Portsmouth DYd 1945 --- --- cancelled
Acasta P452   Portsmouth DYd 1945 --- --- cancelled
Ace P414   Devonport DYd 12.1943 14.3.1945 --- completed as target
Achates P433   Devonport DYd 3/1944 20.9.1945 --- completed as target
Acheron P411, 1948- S61   Chatham DYd 8/1944 25.3.1947 4/1948 BU 2.1972
Adept P412   Chatham DYd 1945 --- --- cancelled
Admirable P434   Vickers-Armstrong, Tyne 1945 --- --- cancelled
Adversary P457   Vickers-Armstrong, Tyne 1945 --- --- cancelled
Aeneas P427, 1948- S72   Cammell Laird, Birkenhead 10/1944 25.10.1945 7/1946 BU 12.1974
Affray P421, 1948- S20   Cammell Laird, Birkenhead 1.1944 12.4.1945 5.1946 lost 17.4.1951
Agate P448   Cammell Laird, Birkenhead 1945 --- --- cancelled
Aggressor P446   Cammell Laird, Birkenhead 1945 --- --- cancelled
Agile P443   Cammell Laird, Birkenhead 1945 --- --- cancelled
Aladdin P454   Cammell Laird, Birkenhead 1945 --- --- cancelled
Alaric P441, 1948- S41   Cammell Laird, Birkenhead 5/1944 18.2.1946 12/1946 BU 7.1971
Alcestis P453   Cammell Laird, Birkenhead 1945 --- --- cancelled
Alcide P415, 1948- S65   Vickers-Armstrong, Barrow 2/1945 12.4.1945 10/1946 BU 6.1974
Alderney P416, 1948- S66   Vickers-Armstrong, Barrow 2/1945 25.6.1945 12/1946 BU 8.1972
Alliance P417, 1948- S67   Vickers-Armstrong, Barrow 3/1945 28.7.1945 5/1947 preserved 1.1981
Ambush P418, 1948- S68   Vickers-Armstrong, Barrow 5/1945 24.9.1945 7/1947 BU 7.1971
Amphion (ex-Anchorite) P439, 1948- S43   Vickers-Armstrong, Barrow 11/1943 31.8.1944 3/1945 BU 7.1971
Anchorite (ex-Amphion) P422, 1948- S64   Vickers-Armstrong, Barrow 7/1945 22.1.1946 11/1947 BU 8.1970
Andrew P423, 1948- S63   Vickers-Armstrong, Barrow 8/1945 6.4.1946 3/1948 BU 5.1977
Andromache P424   Vickers-Armstrong, Barrow 1945 --- --- cancelled
Answer P425   Vickers-Armstrong, Barrow 1945 --- --- cancelled
Antaeus P429   Vickers-Armstrong, Barrow 1945 --- --- cancelled
Antagonist P428   Vickers-Armstrong, Barrow 1945 --- --- cancelled
Anzac P431   Vickers-Armstrong, Barrow 1945 --- --- cancelled
Aphrodite P432   Vickers-Armstrong, Barrow 1945 --- --- cancelled
Approach P435   Vickers-Armstrong, Barrow 1945 --- --- cancelled
Arcadian P436   Vickers-Armstrong, Barrow 1945 --- --- cancelled
Ardent P437   Vickers-Armstrong, Barrow 1945 --- --- cancelled
Argosy P438   Vickers-Armstrong, Barrow 1945 --- --- cancelled
Artemis P449, 1948- S49   Scotts, Greenock 2/1944 26.8.1946 8/1947 BU 1.1972
Artful P456, 1948- S96   Scotts, Greenock 6/1944 22.5.1947 2/1948 BU 6.1972
Asgard P458   Scotts, Greenock 1945 --- --- cancelled
Asperity P444   Vickers-Armstrong, Tyne 1945 --- --- cancelled
Assurance P462   Scotts, Greenock 1945 --- --- cancelled
Astarte P461   Scotts, Greenock 1945 --- --- cancelled
Astute P447, 1948- S47   Vickers-Armstrong, Barrow 4/1944 30.1.1945 6/1945 BU 10.1970
Atlantis P442   Vickers-Armstrong, Barrow 1945 --- --- cancelled
Auriga P419, 1948- S69   Vickers-Armstrong, Barrow 6/1944 29.3.1945 1/1946 BU 2.1975
Aurochs P426, 1948- S26   Vickers-Armstrong, Barrow 6.1944 28.7.1945 2/1947 BU 2.1967
Austere P445   Vickers-Armstrong, Tyne 1945 --- --- cancelled
Awake P459   Vickers-Armstrong, Tyne 1945 --- --- cancelled
Aztec P455   Vickers-Armstrong, Tyne 1945 --- --- cancelled


Technical data


Max speed, kts, kn

18.5 / 8

Abelard, Acasta, Ace, Achates: 17.5 / 8

19 / 15

Displacement standard, t

1120

1120

Displacement normal, t

1385 / 1620

1443 / 1620

Length, m

85.1

67.4 pp 85.9 oa

Breadth, m

6.78

6.80

Draught, m

5.21

5.50

No of shafts

2

2

Machinery

4 8-cyl Vickers supercharged diesels / 2 electric motors

Acheron, Aeneas, Affray, Alaric, Artemis, Artful: 4 8-cyl Admiralty supercharged diesels / 2 electric motors

Abelard, Acasta, Ace, Achates: 4 6-cyl Admiralty supercharged diesels / 2 electric motors

4 Vickers-Admiralty supercharged diesels / 2 electric motors

Power, h. p.

4300 / 1250

Abelard, Acasta, Ace, Achates: 3400 / 1250

4300 / 1250

Fuel, t

diesel oil 165, 219 maximally

diesel oil 213

Endurance, nm(kts)

10500(11) / 90(3)

Armament

Alliance, Amphion, Astute: 1 x 1 - 102/40 QF Mk XXII, 1 x 1 - 20/70 Oerlikon Mk IV, 10 - 533 TT (4 bow, 2 stern, 2 ext bow, 2 ext stern, 20 torpedoes or 18 М2 mines)

others: 1 x 1 - 102/40 S Mk I, 1 x 1 - 20/70 Mk VII S/M, 10 - 533 TT (4 bow, 2 stern, 2 ext bow, 2 ext stern, 20 torpedoes or 18 М2 mines)

6 - 533 TT (4 fwd, 2 aft, 18 torpedoes or 18 Мk 2 or 26 Mk 5 mines)

Electronic equipmenttype 267W radar, type 138, type 152 sonars type 267W radar, type 186, type 187, type 197 sonars
Complement

61

63

Diving depth operational, m105 105


Standard scale images


<i>Affray</i> 1945
Affray 1945
<i>Amphion</i> 1945
Amphion 1945


Graphics


<i>Alderney</i> 1950
Alderney 1950
  <i>Andrew</i> 1974
  Andrew 1974


Project history

These submarines were designed in 1943 specially for service in Pacific and had better surface speed and improved habitability. Unlike all previous patrol submarines, they were double-hulled instead of traditional saddle-tank form. Many technical decisions introduced on "Т" class during serial building, in particular, an all-welded pressure hull were used. Operational diving depth was 105 m, maximal 180 m. Welded fuel tanks placed inside and out of a pressure hull. The additional fuel stowage could be hold in the welded ballast tanks specially adapted for this purpose. In comparison with "Т" class, TTs were distributed between a bow and a stern more equally: 6 and 4, a partly out of a pressure hull.

Building of 46 "A" class boats was provided under 1943 Programme. Order for 28 units had been canceled.

Modernizations

late 1940s, all: - 1 x 1 - 102/40, 1 x 1 - 20/70, 2 - 533 TT (ext fwd)

late 1940s, several: + 1 x 1 - 102/33 S Mk II (QF Mk XXIII gun)

1955 - 1960, Acheron, Aeneas, Alaric, Alcide, Alderney, Alliance, Ambush, Amphion, Anchorite, Andrew, Artemis, Artful, Astute, Auriga: were modernized as follows:
