"ROUND TABLE" trawlers (SIR GALAHAD) (1942 - 1943)





Sir Tristram 1944 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Sir Argavaine T230 162 Lewis, Aberdeen 10/1941 5.3.1942 6.1942 sold 4.1946
Sir Galahad T226 763 Hall Russell, Aberdeen 6/1941 18.12.1941 2.1942 danlayer 1944
Sir Gareth T227 764 Hall Russell, Aberdeen 6/1941 19.1.1942 4.1942 sold 4.1946
Sir Geraint T240 163 Lewis, Aberdeen 11/1941 15.4.1942 7.1942 sold 4.1946
Sir Kay T241 768 Hall Russell, Aberdeen 2/1942 26.10.1942 2.1943 sold 4.1946
Sir Lamorak T242 769 Hall Russell, Aberdeen 2/1942 23.12.1942 3.1943 sold 4.1946
Sir Lancelot T228 160 Lewis, Aberdeen 7/1941 4.12.1941 3.1942 danlayer 1944
Sir Tristram T229 161 Lewis, Aberdeen 9/1941 17.1.1942 5.1942 sold 1947


Technical data


Displacement standard, t

440

Displacement full, t590
Length, m41.8
Breadth, m7.24
Draught, m3.86 deep load
No of shafts

1

Machinery

1 VTE, 1 cylindrical boiler

Power, h. p.600
Max speed, kts

12

Fuel, t

coal 100

Endurance, nm(kts)
Armament

1 x 1 - 76/40 12pdr 12cwt QF Mk I/II/V, 3 x 1 - 20/70 Oerlikon Mk II/IV, 1 DCR (4), sweeps

Electronic equipmenttype 286PU (some) radar
Complement35


Standard scale images

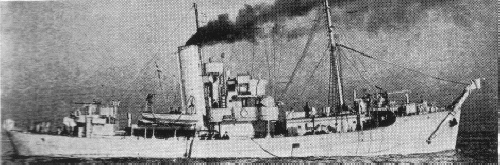

<i>Sir Galahad</i> 1943
Sir Galahad 1943


Graphics


<i>Sir Tristram</i> 1944 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Sir Tristram 1944 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Project is developed on the basis of a civil trawler Star of Orkney built in 1936. Minesweeping trawlers.

Modernizations

None.

Naval service

No significant events.
