fighting ships of the world

ROYAL NAVY (UNITED KINGDOM)

ESCORTS

"KIL" patrol vessels

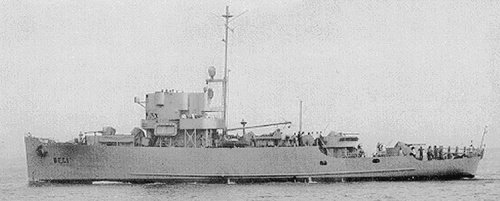

Kilbirnie 1945

Name No Builder Laid down Launched Comp Fate
Kilbirnie (ex-BEC1, ex-PCE827) Z01 Pullman Standard Car, Chicago, USA 10/1942 2/5/1943 7/1943 to USA 12/1946
Kilbride (ex-BEC2, ex-PCE828) Z02 Pullman Standard Car, Chicago, USA 11/1942 15/5/1943 7/1943 to USA 12/1946
Kilchatten (ex-BEC3, ex-PCE829) Z03 Pullman Standard Car, Chicago, USA 12/1942 27/5/1943 8/1943 to USA 12/1946
Kilchrenan (ex-BEC4, ex-PCE830) Z04 Pullman Standard Car, Chicago, USA 12/1942 13/6/1943 8/1943 to USA 12/1946
Kildary (ex-BEC5, ex-PCE831) Z05 Pullman Standard Car, Chicago, USA 1/1943 26/6/1943 9/1943 to USA 12/1946
Kildwick (ex-BEC6, ex-PCE832) Z06 Pullman Standard Car, Chicago, USA 2/1943 10/7/1943 9/1943 to USA 12/1946
Kilham (ex-BEC7, ex-PCE833) Z07 Pullman Standard Car, Chicago, USA 2/1943 2/8/1943 10/1943 to USA 12/1946
Kilkenzie (ex-BEC8, ex-PCE834) Z08 Pullman Standard Car, Chicago, USA 3/1943 19/8/1943 10/1943 to USA 12/1946
Kilkhampton (ex-BEC9, ex-PCE835) Z09 Pullman Standard Car, Chicago, USA 3/1943 3/9/1943 10/1943 to USA 12/1946
Kilmalcolm (ex-BEC10, ex-PCE836) Z10 Pullman Standard Car, Chicago, USA 4/1943 17/9/1943 11/1943 to USA 12/1946
Kilmarnock (ex-BEC11, ex-PCE837) Z11 Pullman Standard Car, Chicago, USA 4/1943 1/10/1943 11/1943 to USA 12/1946
Kilmartin (ex-BEC12, ex-PCE838) Z12 Pullman Standard Car, Chicago, USA 5/1943 13/10/1943 11/1943 to USA 12/1946
Kilmelford (ex-BEC13, ex-PCE839) Z13 Pullman Standard Car, Chicago, USA 5/1943 23/10/1943 12/1943 to USA 12/1946
Kilmington (ex-BEC14, ex-PCE840) Z14 Pullman Standard Car, Chicago, USA 5/1943 2/11/1943 12/1943 to USA 12/1946
Kilmore (ex-BEC15, ex-PCE841) Z15 Pullman Standard Car, Chicago, USA 6/1943 9/11/1943 12/1943 to USA 12/1946





Displacement standard, t

795

Displacement full, t

903

Length, m

54.9 wl 56.2 oa

Breadth, m

10.1

Draught, m

2.74

No of shafts

2

Machinery

2 diesels

Power, h. p.

2000

Max speed, kts

15

Fuel, t

diesel oil 140

Endurance, nm(kts)

8500(12)

Armament

1 x 1 - 76/50 Mk 10/17/20/21/22, 3 x 1 - 40/56 Bofors, 4 x 1 - 20/70 Oerlikon, 1 x 24 - 178 Hedgehog DCT, 4 DCT, 2 DCR (40)

Sensors

SF radar, sonar

Complement

96

Ship project history: Royal Navy has ordered in 1941 in the USA 150 large submarine chasers of ΠΡΕ type, for the subsequent delivery by lend-lease. After the entering of America into war almost all of them have got to USN, Britain have got only 15 ships, one time they were classified as patrol sloops, later as corvettes.

Modernizations: None.

Naval service: No significant events.

Kilbernie
