"CASTLE" offshore patrol vessels (LEEDS CASTLE) (1981 - 1982)





Dumbarton Castle 2003 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Leeds Castle P258 985 Hall Russell, Aberdeen 18.10.1979 29.10.1980 27.10.1981 to Bangladesh 4.2010 (ধলেশ্বরী [Dhaleshwari])
Dumbarton Castle P265 986 Hall Russell, Aberdeen 25.6.1980 3.6.1981 12.3.1982 to Bangladesh 4.2010 (ধলেশ্বরী [Bijoy])


Technical data


Displacement standard, t

1350

Displacement full, t1550
Length, m

75.0 pp 81.0 oa

Breadth, m

11.5

Draught, m

3.42

No of shafts

2

Machinery

2 Ruston 12-RK 320DM diesels

Power, h. p.

5640

Max speed, kts

20

Fuel, t

diesel oil 186

Endurance, nm(kts)10000(12)
Armament

1 x 1 - 40/60 Mk 9, 2 x 1 - 7.6/90, helicopter deck, 2 x 1 - 50 rocket flare launchers, provision for mechanical and acoustic minesweeping gear, mines

Electronic equipment

type 994, type 1006 radars, UAN(1) ECM suite, 4x DLE decoy RL, 2x2 DLF(2) floating decoy launchers

Complement

45



Standard scale images


<i>Leeds Castle </i>1990
Leeds Castle 1990


Graphics

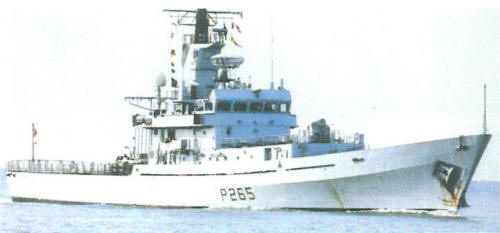

<i>Dumbarton Castle </i>2003 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Dumbarton Castle 2003 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

The need of a property designed OPV led to Naval Staff Target 7040 being prepared. Experience with the 'Island' class showed that more length would make for greater crew efficiency on extended patrol and enable the ship to have alternative roles. What had emerged was a substantial (but still cheap) ship which can been given a selection of weapons and sensors to meet customers' differing needs. In the RN version it was decided not to install a helicopter hangar, but to use the space instead to provide a bigger flight deck on which a Sea King can land and refuel if necessary. In wartime they could ship an OTO Melara 76mnvr62 compact.

Modernizations

early 1990s, both: - 1 x 1 - 40/60; + 1 x 1 - 30/75 DES-30B

Naval service

Both ships acted as dispatch vessels in the South Atlantic during the Falklands conflict, proof of their sea-keeping abilities.

Many thanks to Wolfgang Stöhr for additional information on this page.
