TB23 torpedo boats (2, 1886)
TB23
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| TB23 | 666 | Yarrow, Poplar | 1885 | 1886 | 1886 | Discarded 1905 | |
| TB24 | 667 | Yarrow, Poplar | 1885 | 1886 | 1886 | Discarded 1904 |
Technical data
| Displacement normal, t | 67 |
|---|---|
| Displacement full, t | |
| Length, m | 34.6 oa |
| Breadth, m | 3.84 |
| Draught, m | 2.06 |
| No of shafts | 1 |
| Machinery | 1 2-cyl VCE, 1 locomotive boiler |
| Power, h. p. | TB23: 600 TB24: 500 |
| Max speed, kts | 18.75 |
| Fuel, t | coal 12 |
| Endurance, nm(kts) | 1056 (10) |
| Armament | 2 x 1 - 47/40 3pdr Hotchkiss Mk I, 2 - 356 TT (bow), 1 x 1 - 356 TT |
| Complement | 14 |
Graphics

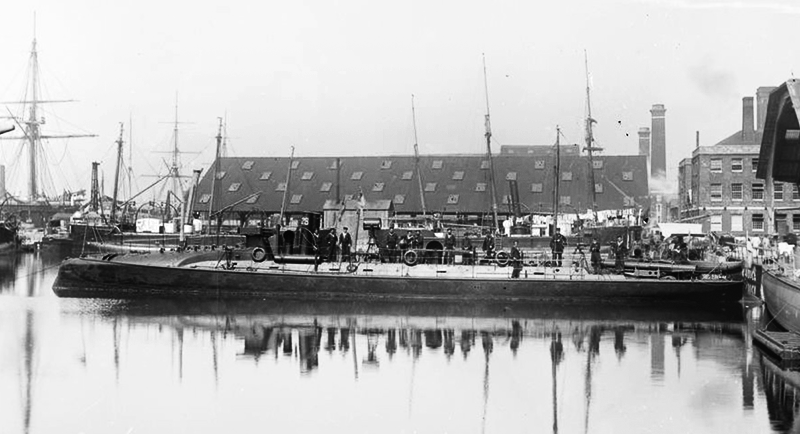

TB23
Project history
Neither were considered worth reboilering.
Modernizations
None.
Naval service
No significant events.
