EMERALD 4th rate sailing frigates





Immortalite

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Emerald     Deptford DYd 4.6.1849 19.7.1856 1.6.1859 sold 12.1869
Melpomene     Pembroke DYd 9.1849 8.8.1857 18.6.1859 sold 1.1875
Immortalite     Pembroke DYd 11.1849 25.10.1859 7.2.1861 sold 1883


Technical data


Displacement normal, t

Emerald: 3503

Melpomene: 3829

Immortalite: 3984

Displacement full, t



Length, m

Emerald, Melpomene: 72.2 pp

Immortalite: 76.5 pp

Breadth, m

Emerald: 16.0

Melpomene, Immortalite: 15.9

Draught, m

5.08 hold depth

No of shafts

1 hoisting

Machinery

Emerald, Immortalite: sails + rectangular boilers, 1 2-cyl HSE

Melpomene: sails + rectangular boilers, 1 2-cyl HSE, trunk

Power, h. p.

Emerald: 2323ihp

Melpomene: 2171ihp

Immortalite: 2366ihp

Max speed, kts

Emerald: 12

Melpomene: 12.4

Immortalite: 12.3

Fuel, t

coal

Endurance, nm(kts)



Armament

1 x 1 - 206/15 68pdr 95cwt shell SBML, 30 x 1 - 204/13 8'' 65cwt shell SBML, 20 x 1 - 163/18 32pdr 56cwt SBML

Complement

550-600



Graphics

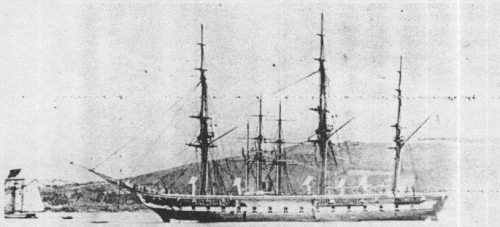

<i>Immortalite</i>
Immortalite


Project history

Screw 51-gun frigates, converted on stocks from sailing frigates. Originally ordered in 1848 as 60-gun sailing frigates. Original fourth of this class, Imperieuse, was begun as screw frigate in 1850 to a different design. Remaining three were reordered in 1854-1856, being lengthened by 15m. Immortalite was lengthened during construction by another 4m, she was allegedly the fastest wooden warship under sail, making over 12kts. Wooden hull.

Modernizations

1862-1863, all: reduced to 35-gun

1869, all: reduced to 28-gun.

Naval service

No significant events.
