Newfoundland-built motor minesweepers (MMS119) (1941 - 1942)
Emberley
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| MMS119, 1942- Emberley | Stone, St. Johns, Newfoundland | 1941 | 1941 | danlayer late 1942, sold 1946 | |||
| MMS120, 1942- Oderin | Stone, St. Johns, Newfoundland | 1941 | 1941 | danlayer late 1942, sold 1946 | |||
| MMS121, 1942- Marticot | Stone, St. Johns, Newfoundland | 1941 | 1942 | danlayer late 1942, sold 1946 | |||
| MMS122, 1942- Merasheen | Stone, St. Johns, Newfoundland | 1942 | 1942 | danlayer late 1942, sold 1946 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 219 |
| Length, m | 35.4 pp |
| Breadth, m | 7.92 |
| Draught, m | 3.05 |
| No of shafts | 1 |
| Machinery | 1 diesel |
| Power, h. p. | 275 |
| Max speed, kts | 9 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 7.7/87, magnetic, acoustic mineweeping gear |
| Electronic equipment | |
| Complement | 18 |
Graphics

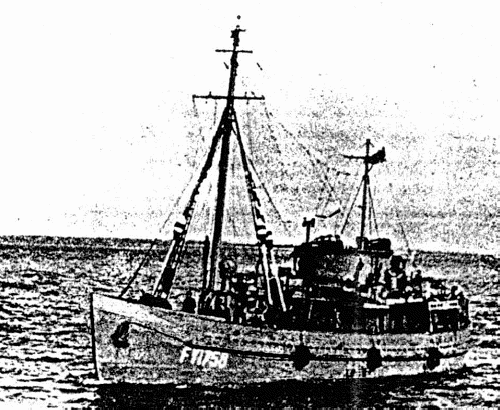

Emberley
Project history
Newfoundland-built MMSs. Wooden hull, magnetic and acoustic sweeping gear.
Modernizations
None.
Naval service
No significant events.
