NAVYPEDIA

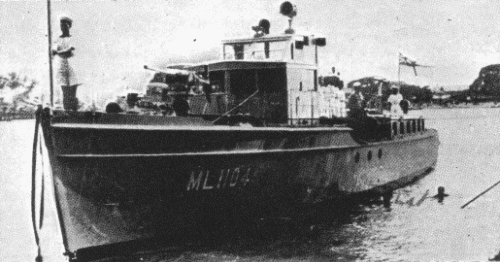

ML1104 1942

Ships

Names	Builders	Completed	Losses	Transfers	Discarding
Pahlawan, 1940 - ML1102 Panglima, 1940 - ML1103 Panji Peningat, 1940 - ML1104 (all Burma RNVR)	Thornycroft, Singapore: Pahlawan, Panglima, Panji, Peningat	1939: Pahlawan, Panglima, Panji, Peningat	Panji (1940), ML1104 (12/1942)	none	circa 1945: ML1102, 1103

Technical data

Displacement standard, t	60
Displacement full, t
Length, m	23.3
Breadth, m	4.11
Draught, m	1.45
No of shafts	3
Machinery	ML1102 - 1103: 2 Thornycroft diesels, 1 Thornycroft petrol engine ML1104: 3 Thornycroft diesels
Power, h. p.	ML1102 - 1103: 780 ML1104: 650
Max speed, kts	ML1102 - 1103: 16 ML1104: 14
Fuel, t	ML1102 - 1103: diesel oil, petrol ML1104: diesel oil
Endurance, nm(kts)
Armament	1 x 1 - 47/40 3pdr Hotchkiss Mk I, 1 x 1 - 7.7/87, mechanical minesweeping gear
Complement

Graphics

Project history

Site-build launches for service in Singapore.

Modernizations

circa 1943, both survived: + 1 x 1 - 20/70 Oerlikon Mk II/IV, type 291U radar

Naval service

no significant events.
