Timsah 1976

Ships

Names	Builders	Completed	Losses	Transfers	Discarding
P401 ظفير [Dhafeer] P402 غضنفر [Ghadunfar] P403 هذا [Hazza] P404 ضرغام [Durgham] P405 تمساح [Timsah] P406 موريجب [Murayjib]	Keith Nelson, Bembridge, UK: P401-406	1968: P401-403 1969: P404, 405 1970: P406	none	none	1991: P401-406

Technical data

Displacement standard, t	10
Displacement full, t
Length, m	12.5
Breadth, m	3.65
Draught, m	1.10
No of shafts	2
Machinery	2 Cummins diesels
Power, h. p.	370
Max speed, kts	19
Fuel, t	diesel oil
Endurance, nm(kts)	350(15)
Armament	2 x 1 - 7.6/90
Electronic equipment	radar
Complement	6

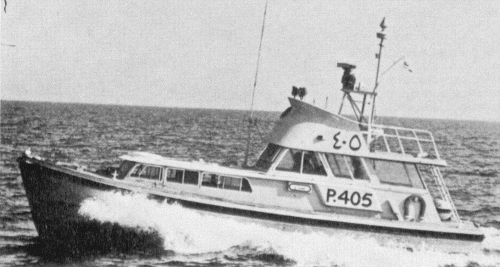

Graphics

Project history

Glasse fibre-hulled launches of Abu Dhabi Marine Police, transferred to Marine Poilce of UAE in July 1977.

Modernizations

None.

Naval service

No significant events.
