NUSRET minelayer (1964)

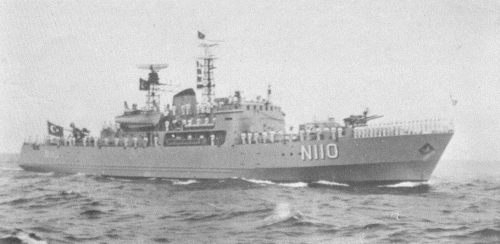

Nusret 1975
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Nusret | N108, 1971- N110 | Frederikshavn Vaerft, Denmark | 1962 | 1964 | 16.9.1964 | stricken 2.2001 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 1880 |
| Length, m | 72.5 pp 77.0 oa |
| Breadth, m | 12.8 |
| Draught, m | 3.40 |
| No of shafts | 2 |
| Machinery | 2 General Motors 16-567D3 diesels |
| Power, h. p. | 4800 |
| Max speed, kts | 16.5 |
| Fuel, t | diesel oil 130 |
| Endurance, nm(kts) | |
| Armament | 2 x 2 - 76/50 Mk 33, 400 mines |
| Electronic equipment | RAN-7S, 2x SPG-34 radars |
| Complement | 130 |
Standard scale images
Nusret 1975
Graphics
Nusret 1975
Project history
Danish Falster-class minelayer (without Sea Sparrow SAM), built in Denmark under MDAP.
Modernizations
None.
Naval service
No significant events.
