Ç101 small landing ships (1942-1945/1967)





Ç104 1975

Ships


Name No Yard No Builder Laid down Launched Comp Fate
  Ç101   UK     1942-1945 // 9.1967 BU 1981
  Ç102   UK     1942-1945 // 9.1967 BU 1981
  Ç103   UK     1942-1945 // 9.1967 stricken 1983
  Ç104   UK     1942-1945 // 9.1967 BU 1982
  Ç105   UK     1942-1945 // 9.1967 BU 1982
  Ç106   UK     1942-1945 // 9.1967 BU 1982


Technical data


Displacement standard, t500
Displacement full, t700
Length, m

57.1

Breadth, m11.8
Draught, m

1.60

No of shafts

2

Machinery

2 Paxman diesels

Power, h. p.

920

Max speed, kts

9

Fuel, t

diesel oil 51

Endurance, nm(kts)1100(8)
Armament

2 x 1 - 20/70 Mk 7

Military load

6 40t or 9 30t tanks or 200 troops or 350 t cargo

Electronic equipmentnone
Complement12


Standard scale images

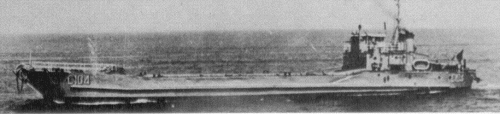

<i>Ç101</i> 1970
Ç101 1970


Graphics


<i>Ç104 </i>1975
Ç104 1975


Project history

British LCT(4) landing craft, tank; modernized before transfer.

Modernizations

None.

Naval service

No significant events.
