Anıttepe 1984

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Alçıtepe (ex-Robert A. Owens)	D346		Bath Iron Wks, USA	29.10.1945	15.7.1946	5.11.1949 // 16.2.1982	stricken 4.1998
Anıttepe (ex-Carpenter)	D347		Consolidated, Orange, USA	30.7.1945	30.12.1945	15.12.1949 // 20.2.1981	stricken 11.1997

100 - 1000 t displacement/ BRT tonnage vessels

Name No Yard No Builder Laid down Launched Comp Fate Alçıtepe (ex-Robert A. Owens) D346   Bath Iron Wks, USA 29.10.1945 15.7.1946 5.11.1949 // 16.2.1982 stricken 4.1998 Anıttepe (ex-Carpenter) D347   Consolidated, Orange, USA 30.7.1945 30.12.1945 15.12.1949 // 20.2.1981 stricken 11.1997

Technical data

Displacement standard, t	2425
Displacement full, t	3540
Length, m	119.0
Breadth, m	12.5
Draught, m	4.61 full load 6.40 over sonar
No of shafts	2
Machinery	2 sets General Electric geared steam turbines, 4 Babcock & Wilcox boilers
Power, h. p.	60000
Max speed, kts	34
Fuel, t	oil 720
Endurance, nm(kts)	5800(12)
Armament	1 x 8 ASROC ASuR (14 RUR-5), 1 x 2 - 127/38 Mk 38, 2 x 3 - 324 Mk 32 TT, helicopter deck
Electronic equipment	2x SPS-10, SPS-40, Mk 35 radars, SQS-23 sonar, WLR-1 ECM suite
Complement	274

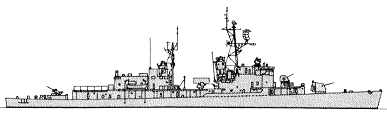

Standard scale images

Graphics

Project history

Former USN Carpenter-class (specialized ASW version of the Gearing class), received FRAM I modernization in 1962. Both can handle AB.212 helicopter but hangar was too small to accept it.

Modernizations

early 1980s, both: + 1 x 2 - 76/50 Mk 33, 1 x 2 - 35/90 GDM-A, 1 DCR, 4x RBOC decoy RL, T-Mk 6 Fanfare torpedo decoy

early 1990s, Anıttepe: - WLR-1 ECM suite; + Cutlass B1 ECM suite

Naval service

No significant events.
