SG71 patrol craft (1985-1987)

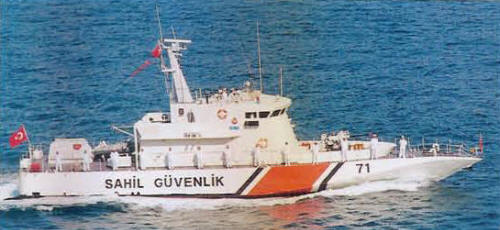

SG71 2000
Ships
Name |
No |
Yard No | Builder |
Laid down |
Launched |
Comp |
Fate |
|---|---|---|---|---|---|---|---|
| SG71 | Taşkizak NSY, Istanbul | 25.7.1985 | in service (2019) | ||||
| SG72 | Taşkizak NSY, Istanbul | 25.7.1985 | 1986 | in service (2019) | |||
| SG73 | Taşkizak NSY, Istanbul | 1986 | in service (2019) | ||||
| SG74 | Taşkizak NSY, Istanbul | 24.7.1987 | 1987 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 210 |
| Length, m | 36.6 |
| Breadth, m | 8.60 |
| Draught, m | 1.90 |
| No of shafts | 3 |
| Machinery | 3 SACM-AGO 195V16 CSHR diesels |
| Power, h. p. | 7200 |
| Max speed, kts | 33 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1000(20) |
| Armament | 1 x 1 - 40/60 Mk 3, 2 x 1 - 12.7/90 |
| Electronic equipment | Decca TM1226 radar |
| Complement | 24 |
Graphics
SG71 2000
Project history
SAR35 class, lengthened SAR33 with longer superstructure.
Modernizations
2008-2010, all: were re-engined (2 propellers, 2 MTU 16V4000 M90 diesels, 7400hp, 33kts)
Naval service
No significant events.
