SG301 patrol boats (2004-2010)

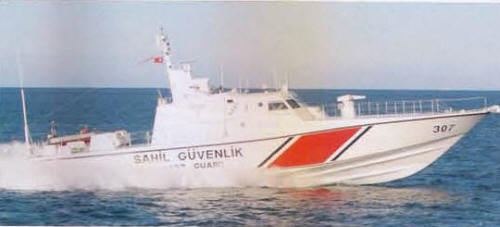

SG307 2008
Ships
Name |
No |
Yard No | Builder |
Laid down |
Launched |
Comp |
Fate |
|---|---|---|---|---|---|---|---|
| SG301 | Yonca-Onuk, Tuzla | 7.2004 | in service (2019) | ||||
| SG302 | Yonca-Onuk, Tuzla | 7.2005 | in service (2019) | ||||
| SG303 | Yonca-Onuk, Tuzla | 9.2005 | in service (2019) | ||||
| SG304 | Yonca-Onuk, Tuzla | 9.2006 | in service (2019) | ||||
| SG305 | Yonca-Onuk, Tuzla | 9.2006 | in service (2019) | ||||
| SG306 | Yonca-Onuk, Tuzla | 9.2006 | in service (2019) | ||||
| SG307 | Yonca-Onuk, Tuzla | 12.2006 | in service (2019) | ||||
| SG308 | Yonca-Onuk, Tuzla | 4.2007 | in service (2019) | ||||
| SG309 | Yonca-Onuk, Tuzla | 7.2007 | in service (2019) | ||||
| SG310 | Yonca-Onuk, Tuzla | 4.2008 | in service (2019) | ||||
| SG311 | Yonca-Onuk, Tuzla | 7.2008 | in service (2019) | ||||
| SG312 | Yonca-Onuk, Tuzla | 10.2008 | in service (2019) | ||||
| SG313 | Yonca-Onuk, Tuzla | 1.2009 | in service (2019) | ||||
| SG314 | Yonca-Onuk, Tuzla | 2010 | in service (2019) | ||||
| SG315 | Yonca-Onuk, Tuzla | 2010 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 124 |
| Length, m | 33.0 pp 35.6 oa |
| Breadth, m | 6.70 |
| Draught, m | 1.40 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 16V4000 M90 diesels |
| Power, h. p. | 7400 |
| Max speed, kts | 47 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 650(20) |
| Armament | SG301-306, 308, 309, 311, 313-315: 1 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90 SG307, 310, 312: 1 x 1 - 20/70 STAMP, 1 x 1 - 12.7/90 |
| Electronic equipment | 2x radars |
| Complement | 18 |
Standard scale images
SG301 2010
Graphics
SG307 2008
Project history
Kaan 33 (MRTP33) design. A small RIB is carried aft.
Modernizations
None.
Naval service
No significant events.
