SG1 interceptors (1998-2004)
SG1 2007
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
SG1 - 18 KKSG11, 12 |
Yonca-Onuk, Tuzla: SG1-18, KKSG11, 12 |
1998: SG1-3, KKSG11, 12 1999: SG4-10 2000: SG11, 12 2001: SG13-16 2002: SG17, 18 |
None |
None |
in service (2019): SG1-18, KKSG11, 12 |
Technical data
| Displacement standard, t | 15 |
|---|---|
| Displacement full, t | 19 |
| Length, m | 15.0 pp 17.0 oa |
| Breadth, m | 4.04 |
| Draught, m | 1.10 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 12V183 TE93 |
| Power, h. p. | 2300 |
| Max speed, kts | 54 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 300(40) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | Raytheon radar |
| Complement | 4 |
Graphics

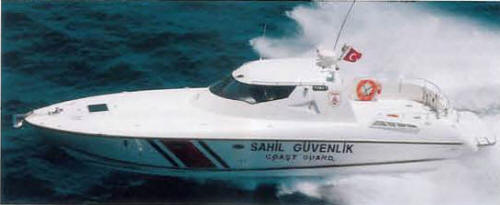

SG1 2007
Project history
Fast interceptors. Kaan 15 (MRTP15) class.
Modernizations
None.
Naval service
No significant events.
