J61 patrol craft (1978-1984)

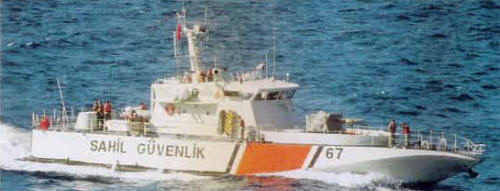

SG67 2004
Ships
Name |
No |
Yard No | Builder |
Laid down |
Launched |
Comp |
Fate |
|---|---|---|---|---|---|---|---|
| J61, 1981- SG61 | Abeking & Rasmussen, Lemwerder, West Germany | 12.12.1977 | 1978 | in service (2019) | |||
| J62, 1981- SG62 | Taşkizak NSY, Istanbul | 7.1978 | 1979 | in service (2019) | |||
| J63, 1981- SG63 | Taşkizak NSY, Istanbul | 1980 | in service (2019) | ||||
| J64, 1981- SG64 | Taşkizak NSY, Istanbul | 1980 | in service (2019) | ||||
| SG65 | Taşkizak NSY, Istanbul | 30.7.1981 | in service (2019) | ||||
| SG66 | Taşkizak NSY, Istanbul | 30.7.1981 | in service (2019) | ||||
| SG67 | Taşkizak NSY, Istanbul | 30.7.1981 | in service (2019) | ||||
| SG68 | Taşkizak NSY, Istanbul | 1982-84 | in service (2019) | ||||
| SG69 | Taşkizak NSY, Istanbul | 1982-84 | in service (2019) | ||||
| SG70 | Taşkizak NSY, Istanbul | 1982-84 | in service (2019) |
Technical data
| Displacement standard, t | 150 |
|---|---|
| Displacement full, t | 170 |
| Length, m | 29.0 wl 33.5 oa |
| Breadth, m | 8.60 |
| Draught, m | 1.80 |
| No of shafts | 3 |
| Machinery | 3 SACM-AGO 195V16 CSHR diesels |
| Power, h. p. | 7200 |
| Max speed, kts | 33 |
| Fuel, t | diesel oil 18 |
| Endurance, nm(kts) | 1000(20) |
| Armament | 1 x 1 - 40/60 Mk 3 or 1 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90 |
| Electronic equipment | Decca TM1226 radar |
| Complement | 23 |
Standard scale images
SG61 1990
Graphics
SG67 2004
Project history
SAR33 class. Wedge-shaped hull design of remarkable seaworthiness and steadiness at high speed in heavy weather.
Modernizations
None.
Naval service
No significant events.
