DOST patrol ships (2013-2014)

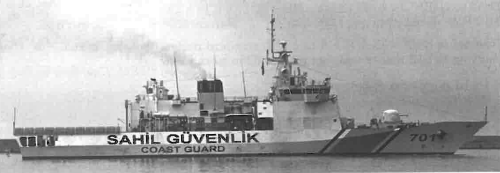

Dost 2011
Ships
Name |
No |
Builder |
Laid down |
Launched |
Comp |
Fate |
|---|---|---|---|---|---|---|
| Dost | SG701 | RMK Marine, Tuzla | 5.2008 | 9.6.2010 | 5.4.2013 | in service (2019) |
| Güven | SG702 | RMK Marine, Tuzla | 2009 | 15.12.2010 | 21.11.2013 | in service (2019) |
| Umut | SG703 | RMK Marine, Tuzla | 2009 | 31.5.2011 | 5.4.2013 | in service (2019) |
| Yasam | SG704 | RMK Marine, Tuzla | 2010 | 13.9.2012 | 19.5.2014 | in service (2019) |
Technical data
| Displacement standard, t | 1520 |
|---|---|
| Displacement full, t | 1700 |
| Length, m | 80.0 pp 88.6 oa |
| Breadth, m | 12.2 |
| Draught, m | 3.40 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V... diesels |
| Power, h. p. | 14120 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3500(14) |
| Armament | 1 x 2 - 40/70 Breda-Bofors Compact Twin 40, 2 x 1 - 25/80 Breda-Oerlikon KBA, 1 helicopter (AB-412EP) |
| Electronic equipment | surface/air search, navigation radars |
| Complement | 64 + 13 passengers |
Standard scale images
Dost 2015
Graphics
Dost 2011
Project history
Long-range offshore patrol vessels, based on the Italian Sirio class design.
Modernizations
None.
Naval service
No significant events.
