3. MTB1 patrol launches (1942)





MTB9 1949

Ships


Names Builders Commissioned Losses Transfers Discarding

P311 MTB1, 1983- Dalgiç 1

P312 MTB2, 1983- Dalgiç 2

P313 - 320 MTB3 - 10

Gölcük Tersanesi: MTB1 - 10

1942: MTB1 - 10

None

None

1983: P311

1987: P320

2004: P312, 315

2011: P313, 314, 316-319



Technical data


Displacement standard, t

70

Displacement full, t
Length, m

21.8

Breadth, m

4.20

Draught, m

2.60

No of shafts

2

Machinery

2 diesels

Power, h. p.

2000

Max speed, kts

20

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 x 1 - 20/70 Oerlikon Mk II/IV or 1 x 1 - 12.7/90

Complement8


Graphics

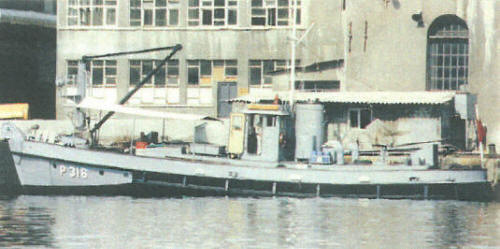

<i>MTB6 </i>1995 as minehunting diving tender
MTB6 1995 as minehunting diving tender

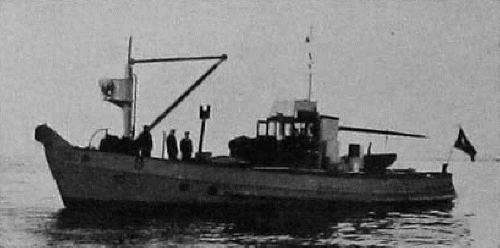

<i>MTB9 </i>1949
MTB9 1949


Project history

Patrol boats and torpedo recovery vessels. In literature they are often wrongly called as MTBs.

Modernizations

1983, MTB2 - 9: converted to minehunting diving tenders.

Naval service

No significant events.
