TORGUD REİS battleships (1894/1910)





Torgud Reis 1911

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Torgud Reis (ex-Weißenburg)     Vulcan, Stettin, Germany 1890 14.12.1891 5.6.1894 // 31.8.1910 training hulk 1924
Barbaros Hayreddin (ex-Kurfürst Friedrich Wilhelm)     KMW Wilhelmshaven, Germany 1890 30.6.1891 24.4.1894 // 31.8.1910 sunk 8.8.1915


Technical data


Displacement normal, t

10013
Displacement full, t10670
Length, m

113.9 pp 115.7 oa
Breadth, m

19.5
Draught, m

7.60
No of shafts

2
Machinery

2 VTE, 12 cylindrical boilers
Power, h. p.

10200
Max speed, kts

16.5
Fuel, t

coal 1050
Endurance, nm(kts)4300(10)
Armour, mm

Torgud Reis: Harvey steel; belt: 400 - 300, upper belt: 200 - 180, deck: 60 with 65mm slopes, barbettes: 300, gun houses: 120, casemates: 42, CT: 300 - 120

Barbaros Hayreddin: compound; belt: 400 - 300, upper belt: 200 - 180, deck: 60 with 65mm slopes, barbettes: 300, gun houses: 120, CT: 300 - 120
Armament

2 x 2 - 283/37 MRK L/40 C/90, 1 x 2 - 283/32 MRK L/35 C/90, 6 x 1 - 105/32 SK L/35 C/91, 8 x 1 - 88/27 SK L/30 C/89, 12 x 1 - 7.9/79, 5 - 450 TT (1 bow, 4 beam)
Complement

600


Standard scale images

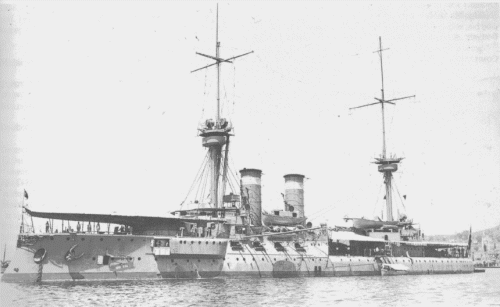

<i>Torgud Reis </i>1914
Torgud Reis 1914


Graphics

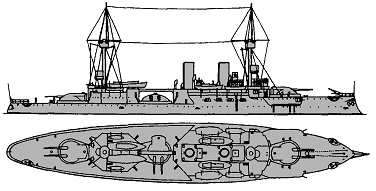

<i>Torgud Reis </i> 1911
Torgud Reis 1911


Project history

Former German barbette battleships Weißenburg and Kurfürst Friedrich Wilhelm, bought 5.8.1910. In 1911 maximum speed of Torgud Reiss was only 10kts.

Ship protection

Protection consisted of Nickel (Harvey) steel on Torgud Reis and compound on Barbaros Hayreddin made by Krupp. Narrow main belt (400mm between end barbettes, tapering to 200mm at lower edge, 300m at ship ends, tapering to 180mm at lower edge) was extended at all hull length. 60mm main deck was connected by 65mm slopes with lower edge of main belt. Barbettes of main guns had 300mm thickness everywhere, gun houses had 120mm faces, sides and rears and 50mm roofs. Casemates of 105mm guns had 42mm protection. Fore CT had 300mm sides and 30mm roof, aft CT had 120mm sides and 30mm CT.

Modernizations

1912, both: - 2 x 1 - 88/27, 2 - 450 TT (beam)

1916, Torgud Reis: - 6 x 1 - 105/32

1927, Torgud Reis: - 4 x 1 - 88/27, 1 - 450 TT (bow)

Naval service

Barbaros Haireddin was sunk by British submarine E11 in sea of Marmara 8.8.1915. Torgud Reiss 30.10.1918 was laid up into reserve. Later she served as training hulk. She was stricken in 1933, but broken up only in 1950-1956.
