Nelson 2009 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate

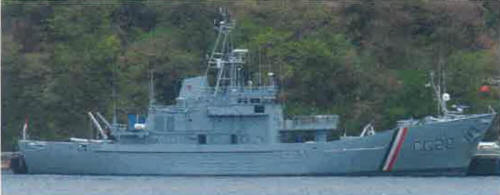

Nelson (ex-Orkney)	CG20	972	Hall Russell, Aberdeen, UK	1975	29.6.1976	25.2.1977 // 18.12.2000	discarded 2015

Technical data

Displacement standard, t	998
Displacement full, t	1280
Length, m	52.0 pp 61.1 oa
Breadth, m	11.0
Draught, m	4.27
No of shafts	1
Machinery	2 Ruston 12-RK 3 CM diesels
Power, h. p.	5640
Max speed, kts	16.5
Fuel, t	diesel oil 310
Endurance, nm(kts)	11000(12)
Armament	1 x 1 - 20/90 GAM-B01, 2 x 1 - 7.6/90
Electronic equipment	type 1006 radar, SU 'Sidescan' sonar, DEA-1 CCS
Complement	35

Standard scale images

Graphics

Project history

Former Royal Navy Island-class patrol ship, retired from the RN in 1999, transferred in 2000 and recommissioned 22.2.2001. Disarmed before the transfer.

Modernizations

None.

Naval service

No significant events.
