539 patrol boats (1986)
539 2001
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
539, 540 |
Marsun, Bangkok: 539, 540 |
1986: 539, 540 |
None |
None |
in service (2019): 539, 540 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 30 |
| Length, m | 17.4 |
| Breadth, m | 4.90 |
| Draught, m | 0.90 |
| No of shafts | 2 |
| Machinery | 2 General Motors Detroit Diesel 12V71T diesels |
| Power, h. p. | 1500 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 8 |
Graphics

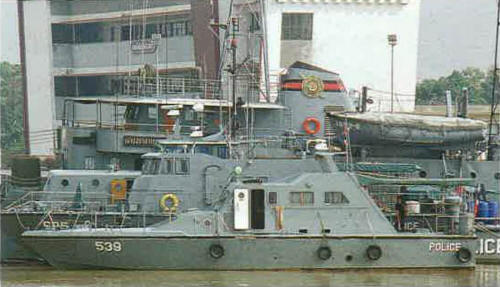

539 2001
Project history
Small patrol boats.
Modernizations
None.
Naval service
No significant events.
