MURATHA gunboats (1898-1901)
Sugrib 1932
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| ทีพฟะ้ฟ [Muratha] | Hongkong & Whampoa, Hongkong, UK | 1898 | 1898 | stricken 12.1929 | |||
| จังหวัดบาหลี [Bali] | Hongkong & Whampoa, Hongkong, UK | 1900 | 1900 | stricken 7.1935 | |||
| หีเพริ [Sugrib] | Hongkong & Whampoa, Hongkong, UK | 1901 | 1901 | stricken 7.1935 |
Technical data
| Displacement normal, t | Muratha: 530 Bali, Sugrib: 580 |
|---|---|
| Displacement full, t | |
| Length, m | Muratha: 44.2 Bali, Sugrib: 49.4 |
| Breadth, m | 7.01 |
| Draught, m | 3.05 |
| No of shafts | 2 |
| Machinery | 2 VTE, 2 boilers |
| Power, h. p. | 500 |
| Max speed, kts | 11.4 |
| Fuel, t | coal |
| Endurance, nm(kts) |
|
| Armament | 1 x 1 - 120/40 Armstrong QF, 5 x 1 - 57/40 Hotchkiss, 4 x 1 - 37/20 Hotchkiss |
| Complement | 83 |
Standard scale images

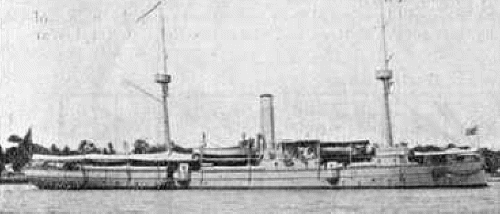

Bhali 1930
Graphics
Sugrib 1932
Project history
Colonial steel-hulled gunboats with ram bow, two masts, one funnel and flush deck.
Modernizations
None.
Naval service
No significant events.
