PATTANI patrol ships (2005-2006)

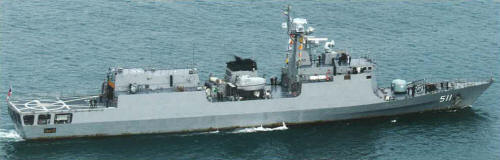

Pattani 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| ปัตตานี [Pattani] | 511 | Hudong, Shanghai | 2003 | 19.9.2004 | 16.12.2005 | in service (2019) | |
| นราธิวาส [Narathiwat] | 512 | Hudong, Shanghai | 2004 | 3.2005 | 24.4.2006 | in service (2019) |
Technical data
| Displacement standard, t | 1300 |
|---|---|
| Displacement full, t | 1635 |
| Length, m | 95.5 |
| Breadth, m | 11.6 |
| Draught, m | 3.10 |
| No of shafts | 2 |
| Machinery | 2 Ruston 16RK270 diesels |
| Power, h. p. | 15660 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3500(15) |
| Armament | 1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 1 - 20/90 Vector GI2, 1 helicopter (Z-9) |
| Electronic equipment | RAN-30X, TMX/EO, 3x Raytheon radars, COSYS Mk 1 CCS |
| Complement | 78 |
Standard scale images
Pattani 2010
Graphics
Pattani 2008
Project history
Ordered 21.12.2002 with option for two more. Place for 8 SSMs is reserved.
Modernizations
None.
Naval service
Narathiwat was badly damaged by running a coastal rock 13.9.2010.
