ROYAL SIAMESE / THAI NAVY (SIAM / THAILAND)

TORPEDO SHIPS

SUA TAYANCHON destroyers (1908-1912)

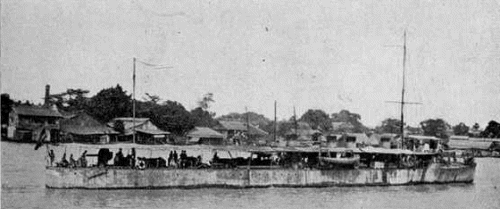

Sua Tayanchon 1908

Name No Builder Laid down Launched Comp Fate
ภาพเรือ <Sua Tayanchon>   Kawasaki, Kobe, Japan 1907 27/4/1908 1908 sold 8/1939
คำรณสินธุ <Sua Khamronsin>   Kawasaki, Kobe, Japan 1910 5/2/1912 1912 sold 1/1937



Displacement normal, t

375 - 385

Displacement full, t



Length, m

69.2 pp

Breadth, m

6.60

Draught, m

1.80

No of shafts

2

Machinery

VTE, 4 Kampon watertube boilers

Power, h. p.

6000

Max speed, kts

27

Fuel, t

oil 75

Endurance, nm(kts) 850(11)

Armament

1 x 1 - 76/40 41-shiki, 5 x 1 - 57/40 Hotchkiss, 2 x 1 - 450 TT

Complement

75

Ship project history: Practically sister-ships of Japanese destroyer Harusame, but with purely oil-firing boilers.

Modernizations: None.

Naval service: No significant events.

Sua Khamronsin 1919
