T81 patrol boats (1999-2000)
Tor 83 2004
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| ต.81 [Tor 81] | 81 | Silkline, Pranburi | 4.8.1999 | in service (2019) | |||
| ต.82 [Tor 82] | 82 | Silkline, Pranburi | 9.12.1999 | in service (2019) | |||
| ต.83 [Tor 83] | 83 | Silkline, Pranburi | 27.10.2000 | in service (2019) |
Technical data
| Displacement standard, t | 110 |
|---|---|
| Displacement full, t | 120 |
| Length, m | 28.0 pp 30.1 oa |
| Breadth, m | 6.30 |
| Draught, m | 1.70 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V200 TE90 diesels |
| Power, h. p. | 3600 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil 24 |
| Endurance, nm(kts) | 1300(15) |
| Armament | 1 x 1 - 40/60 Mk 3, 1 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90 |
| Electronic equipment | Sperry SM5000 radar |
| Complement | 28 |
Graphics

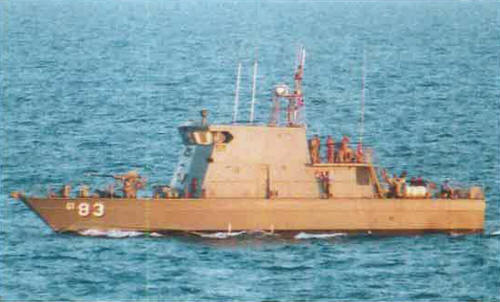

Tor 83 2004
Project history
First 3 were ordered in 1996, 15 more planned were never ordered due to bankruptcy of shipbuilder. Designed and constructed in partnership with ASC, ASC design PC30.
Modernizations
None.
Naval service
No significant events.
