P51 assault landing boats (2009)
Lor 51 2009
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
ล.51-54 [Lor 51-54] |
Marsun, Bangkok: Lor 51-54 |
2009: Lor 51-54 |
None |
None | in service (2019): Lor 51-54 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 25 |
| Length, m | 18.3 |
| Breadth, m | 4.40 |
| Draught, m | 0.80 |
| No of shafts | 2 waterjets |
| Machinery | 2 MAN diesels |
| Power, h. p. | 2600 |
| Max speed, kts | 42 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 370(35) |
| Armament | 1 x 1 - 12.7/90 |
| Military load | 18 troops |
| Electronic equipment | nav. radar |
| Complement | 8 |
Graphics

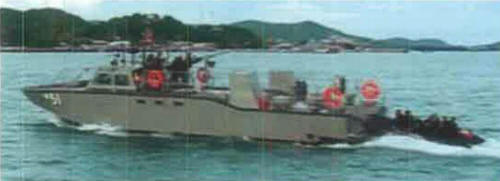

Lor 51 2009
Project history
Pneumatic-powered bow ramp. Aluminium construction.
Modernizations
None.
Naval service
No significant events.
