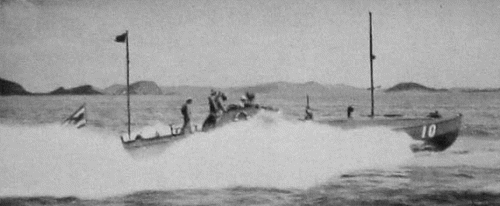

No10 1950

Ships

Names	Builders	Completed	Losses	Transfers	Discarding
หมายเลข 6 - 17 [No6 - 17]	Thornycroft, Hampton: No6 - 9 Bangkok DYd: No10 - 17	1935: No6 - 8 1936 - 1937: No9 - 17	None	None	1950/53: No6, 7, 13 - 17 1954/58: No8 - 12

Technical data

Displacement standard, t	16
Displacement full, t
Length, m	16.8
Breadth, m	3.35
Draught, m	1.15
No of shafts	2
Machinery	2 Thornycroft petrol engines / 1 Thornycroft petrol engine for cruising
Power, h. p.	950 / 30
Max speed, kts	40
Fuel, t	petrol 2.2
Endurance, nm(kts)
Armament	2 x 1 - 7.7/94, 2 - 450 TT, 2 DC
Complement	5

Standard scale images

Graphics

Project history

Practically repetition of No1-5 MTBs, but with more powerful main engines and additional engines for cruising.

Modernizations

None.

Naval service

No significant events.
