2! JW9861 large patrol craft (1970-1971, 1963-1988/1992)

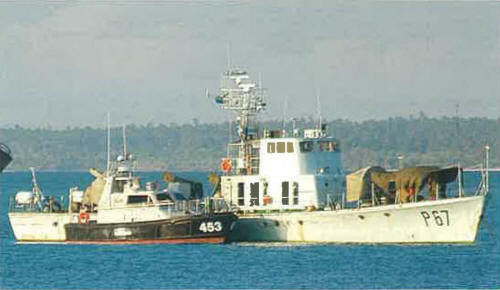

Mzizi 2005

Ships


Name No Yard No Builder Laid down Launched Comp Fate
  JW9861   Wuzhou SY, China     1970-71 deleted 1990-92
  JW9862   Wuzhou SY, China     1970-71 deleted 1990-92
  JW9863   Wuzhou SY, China     1970-71 deleted 1990-92
  JW9864   Wuzhou SY, China     1970-71 deleted 1990-92
  JW9865   Wuzhou SY, China     1970-71 deleted 1990-92
  JW9866   Wuzhou SY, China     1970-71 deleted 1990-92
Mzizi JW9867, late 2000s- P67   Wuzhou SY, China     1963-88 // 6.1992 in service (2020)
Mzia JW9868, late 2000s- P68   Wuzhou SY, China     1963-88 // 6.1992 in service (2020)


Technical data


Displacement standard, t

123

Displacement full, t

135

Length, m

38.8

Breadth, m

5.41

Draught, m

1.55

No of shafts

4

Machinery

2 M-50F-4 diesels + 2 12D6 diesels

Power, h. p.

4200 (2x1200+2x910)

Max speed, kts

28.5

Fuel, t

diesel oil

Endurance, nm(kts)

750(16.5)

Armament

2 x 2 - 37/63 type 61, 2 x 2 - 25/80 type 61M

Electronic equipment

Reya or type 351 or type 756 radar

Complement

36



Standard scale images


<i>JW9863</i> 1975
JW9863 1975


Graphics


<i>Mzizi </i>2005
Mzizi 2005


Project history

Former Chinese Project 062-II patrol craft without ASW capabilities.

Modernizations

None.

Naval service

No significant events.
