HAI LUNG submarines (1987-1988)

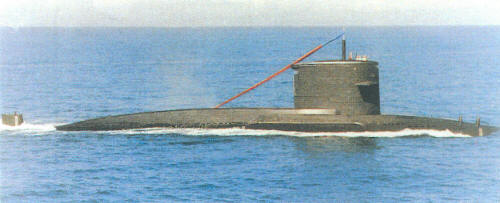

Hai Lung 2000

Ships


Name No Yard No Builder Laid down Launched Comp Fate
海龍 [Hai Lung] 793   Wilton Fijenoord, Schiedam, Netherlands 15/12/1982 4/10/1986 9/10/1987 in service (2019)
海龍 [Hai Hu] 794   Wilton Fijenoord, Schiedam, Netherlands 12/1982 20/12/1986 4/7/1988 in service (2019)


Technical data


Displacement standard, t
Displacement normal, t

2375 / 2660

Length, m

66.9

Breadth, m

8.40

Draught, m

6.70

No of shafts

1

Machinery

3 Brons-Werkspoor ORUB 215-12V diesel-generators, 1 Holec electric motor

Power, h. p.

1400 / 5100

Max speed, kts

11 / 20

Fuel, t

diesel oil 310

Endurance, nm(kts)10000(9) /
Armament

6 - 533 TT (bow, 20 SUT and Mk 37 torpedoes)

Electronic equipmentZW-06 radar, SIASS Z sonar suite, Timnex 4 CH(V)2, Argo AR-700 ECM suites, Gipsy CCS
Complement

67

Diving depth operational, m

240



Standard scale images


<i>Hai Lung </i>1990
Hai Lung 1990


Graphics


<i>Hai Lung </i>2000
Hai Lung 2000


Ship project history


Modified versions of Netherlands Zvaardvis class ordered in 1980 despite protests from mainland China. These were the first new major warships built for Taiwan since 1949. Construction was delayed by financial difficulties at the builder. A highly automated design. A later order for two more (with option for a further pair) was turned down by the Netherlands government in 1984 due to Chinese pressure.

Modernizations


2013, both: + ability to launch Sub Harpoon missiles instead of torpedoes and Mk 48 Mod.3/4 torpedoes (presumably up to 4 UGM-84 Sub-Harpoon Block I or II)

Naval service


No significant events.
