CHI YANG frigates (1971-1974/1992-1998)

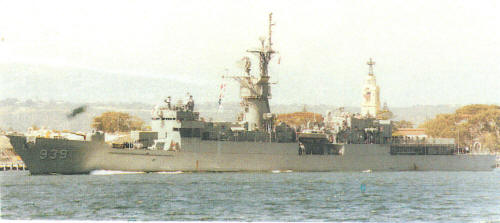

Yi Yang 1999

Ships


Name No Yard No Builder Laid down Launched Comm Fate
濟陽 [Chih Yang] (ex-Robert E. Peary) 932   Lockheed, Seattle, USA 20/12/1970 23/6/1971 23/9/1972 // 6/10/1993 stricken 5/2015
鳳陽 [Feng Yang] (ex-Brewton) 933   Avondale, Westwego, USA 2/10/1970 24/7/1971 8/7/1972 // 6/10/1993 in service (2019)
汾陽 [Fen Yang] (ex-Kirk) 934   Avondale, Westwego, USA 4/12/1970 25/9/1971 9/9/1972 // 6/10/1993 in service (2019)
蘭陽 [Lan Yang] (ex-Joseph Hewes) 935   Avondale, Westwego, USA 15/5/1969 7/3/1970 24/4/1971 // 4/8/1995 in service (2019)
海陽 [Hae Yang] (ex-Cook) 936   Avondale, Westwego, USA 20/3/1970 23/1/1971 18/12/1971 // 4/8/1995 stricken 5/2015
淮陽 [Hwai Yang] (ex-Barbey) 937   Avondale, Westwego, USA 5/2/1971 4/12/1971 11/11/1972 // 4/8/1995 in service (2019)
寧陽 [Ning Yang] (ex-Aylwin) 938   Avondale, Westwego, USA 13/11/1969 29/8/1970 18/9/1971 // 18/10/1999 in service (2019)
宜陽 [Yi Yang] (ex-Valdez) 939   Avondale, Westwego, USA 30/6/1972 24/3/1973 27/7/1974 // 18/10/1999 in service (2019)


Technical data


Displacement standard, t

3877

Displacement full, t

4260

Length, m

126.5 wl 134.0 oa

Breadth, m

14.3

Draught, m

7.55 over sonar

No of shafts

1

Machinery

932: Westinghouse geared steam turbine, 2 Babcock & Wilcox boilers

933-939: Westinghouse geared steam turbine, 2 Combustion Engineering boilers

Power, h. p.

35000

Max speed, kts

27

Fuel, t

oil 750

Endurance, nm(kts)4500(20)
Armament

1 x (2 Harpoon SSM + 6 ASROC ASuR) (4 RGM-84A, 12 RUR-5), 1 x 1 - 127/54 Mk 42 Mod.9, 1 x 6 - 20/76 Mk 15 Phalanx, 4 x 1 - 20/68 T75, 2 x 1 - 12.7/90, 4 - 324 Mk 32 TT (22), 1 helicopter (Hughes MD500)

Electronic equipment

932-936, 938: SPS-64(v)9, SPS-10F, SPS-40B, SPG-53F, Mk 90 radars, SQS-26CX, SQS-35, SQR-18A sonars, SLQ-32(v)1/2 ECM suite, 2x Mk 36 SRBOC decoy RL, T Mk 6 Fanfare torpedo decoy, FFISTS CCS

937, 939: SPS-64(v)9, SPS-67(v)1, SPS-40B, SPG-53F, Mk 90 radars, SQS-26CX, SQS-35, SQR-18A sonars, SLQ-32(v)1/2 ECM suite, 2x Mk 36 SRBOC decoy RL, T Mk 6 Fanfare torpedo decoy, FFISTS CCS

Complement

285



Standard scale images

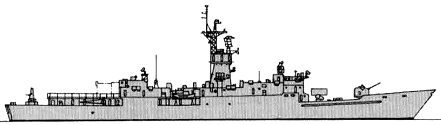

<i>Chi Yang </i>2000
Chi Yang 2000


Graphics


<i>Yi Yang </i>1999
Yi Yang 1999


Ship project history


Former USN frigates of Knox class. The first three were transferred on lease on decommissioning from the US Navy 7/8/1992, 23/7/1992 and 6/8/1993 respectively. They arrived at Tsoying 27/9/1993 and were commissioned 6/10/1993. Lan Yang transferred on decommissioning from the US Navy 30/6/1994, while Hae Yang and Hwai Yang  were transferred 31/5/1994 and 21/6/1994 respectively; all three left US waters 2/7/1995 and were formally recommissioned 4/8/1995. Permanent transfer by sale for the first six was approved under the US Defense Authorization Act for FY 99. A third group of three was planned for acquisition by sale during 1996; all had been in reserve for several years and needed reactivation refits prior to delivery, and the final arrangement, made in 1998, resulted in the purchase of Ning Yang and Yi Yang 28/4/1998. After activation refits they arrived in Taiwan on 4/10/1999 and were commissioned 18/10/1999.

Modernizations


2005-2009, Feng Yang, Hwai Yang, Ning Yang, Yi Yang; 2016-2017, Fen Yang, Lan Yang: - SPS-40B, SPG-53F radars, SQR-18A sonar, FFISTS CCS; + (2 x 3 + 2 x 2) Standard SM-1MR SSM/SAM (10 RIM-66A), 2 x 1 - 12.7/90, DA-08/2, STIR-1.8 radars, SQR-18A(v)2 sonar, H930 mod.3 CCS

Naval service


No significant events.
