HSIEN YANG destroyers (1942/1955-1970)

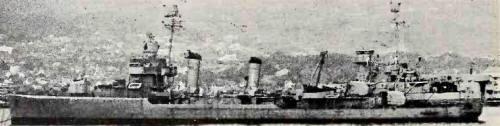

Hsien Yang 1970

Ships


Name No Yard No Builder Laid down Launched Comp Fate
咸陽 [Hsien Yang] (ex-Rodman) DD16   Federal, Kearny, USA 12/1940 26/9/1941 1/1942 // 28/7/1955 wrecked 1969, CTL
咸陽 [Hsien Yang] (ex-Hatakaze, ex-Macomb) DD16   Bath Iron Wks, USA 9/1940 23/9/1941 1/1942 // 6/8/1970 stricken 1974


Technical data


Displacement standard, t

1900

Displacement full, t

2600

Length, m

103.9 wl 106.2 oa

Breadth, m

11.0

DD634, 635: 11.3

Draught, m

4.92 full load

No of shafts

2

Machinery

2 sets Westinghouse geared steam turbines, 4 Babcock & Wilcox boilers

Power, h. p.

50000

Max speed, kts

35

Fuel, t

oil 302 - 453

Endurance, nm(kts)3630(20) - 3880(20)
Armament

DD16(i): 3 x 1 - 127/38 Mk 30, 2 x 2 - 40/60 Mk 1, 7 x 1 - 20/70 Mk 10, 2 DCT, 2 DCR (34), mechanical minesweeping gear

DD16(ii): 3 x 1 - 127/38 Mk 30, 2 x 4 - 40/60 Mk 2, 2 x 1 - 20/70 Mk 10, 2 x 24 - 178 Hedgehog Mk 11 ASWRL, 2 DCR (34)

Electronic equipment

SC, SG, Mk 12/22 radars, QCJ sonar

Complement

208



Standard scale images


<i>Hsien Yang </i>1971
Hsien Yang 1971


Graphics


<i>Hsien Yang </i>1970
Hsien Yang 1970


Ship project history


Former USN destroyers of Bristol class. Hsien Yang was transferred on loan from the USN. In addition the ex-Japanese destroyers Hatakaze and Asakaze were transferred to Taiwan in August 1970 to provide spares for the first four destroyers of Benson/Gleaves/Bristol classes. After the loss of the original Hsien Yang former Hatakaze was commissioned by ROC Navy under the same name.

Modernizations


None.

Naval service


No significant events.
