YUN HSING patrol ship (1987)

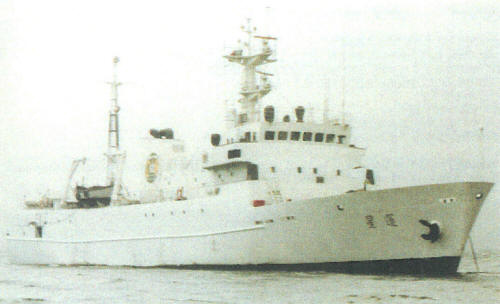

Yun Hsing 2000
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| 運星 [Yun Hsing] | China SB, Keelung | 28.12.1987 | in service (2019) |
Technical data
| Displacement standard, t | 900 |
|---|---|
| Displacement full, t | 964 |
| Length, m | 65.0 |
| Breadth, m | 10.0 |
| Draught, m | 2.90 |
| No of shafts | 2 |
| Machinery | 2 MAN-Sulzer 12 VSA 25/30 diesels |
| Power, h. p. | 7200 |
| Max speed, kts | 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | 2x JRC radars |
| Complement | 67 |
Graphics
Yun Hsing 2000
Project history
Carries two US-built 7.9m motor whaleboats as inspection boats
Modernizations
None.
Naval service
No significant events.
