TAICHUNG patrol ships (2001)

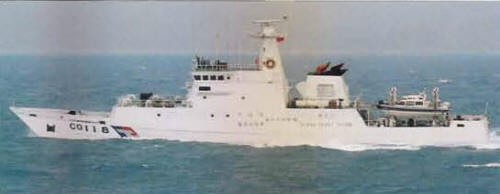

Keelung 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| 台中 [Taichung] | CG117 | Chung Fu SB, Kaohsiung | 1.3.2001 | in service (2019) | |||
| 基隆 [Keelung] | CG118 | Chung Fu SB, Kaohsiung | 9.4.2001 | in service (2019) | |||
| 花蓮 [Hualien] | CG119 | Chung Fu SB, Kaohsiung | 4.7.2001 | in service (2019) | |||
| 澎湖 [Penghu] | CG120 | Chung Fu SB, Kaohsiung | 28.5.2001 | in service (2019) |
Technical data
| Displacement standard, t | 500 |
|---|---|
| Displacement full, t | 630 |
| Length, m | 63.6 |
| Breadth, m | 9.28 |
| Draught, m | 2.70 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V1163 TB93 diesels |
| Power, h. p. | 15610 |
| Max speed, kts | 31 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2400(18) |
| Armament | 1 x 1 - 20/68 T75, 2 x 1 - 12.7/90 |
| Electronic equipment | 2x JRC radars |
| Complement | 46 |
Standard scale images
Taichung 2010
Graphics
Keelung 2008
Project history
Carrying two RIB inspection/rescue aft in davits. Steel and aluminum construction.
Modernizations
None.
Naval service
No significant events.
