SHUN HU 2 patrol ships (1992)
Shun Hu 2 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| 巡護二 [Shun Hu 2] | HH No. 2 | Chung Hsin SBC, Kaohsiung | 10/1992 | deleted 7.2013 | |||
| 巡護三 [Shun Hu 3] | HH No. 3 | Chung Hsin SBC, Kaohsiung | 10/1992 | deleted 1.2013 |
Technical data
| Displacement standard, t | 400 |
|---|---|
| Displacement full, t | 496 |
| Length, m | 45.2 pp 51.5 oa |
| Breadth, m | 8.40 |
| Draught, m | 3.70 |
| No of shafts | 1 |
| Machinery | 1 Daihatsu 6DLM-32F diesel |
| Power, h. p. | 2500 |
| Max speed, kts | 16 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 10000(12) |
| Armament | none |
| Electronic equipment | 2x radars |
| Complement | 22 |
Graphics

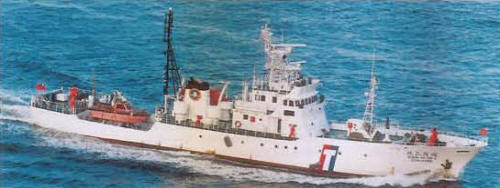

Shun Hu 2 2008
Project history
Medium unarmed patrol ships.
Modernizations
None.
Naval service
No significant events.
