SHUN HU 1 patrol ship (1992)
Shun Hu 1 2006
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| 巡護一 [Shun Hu 1] | HH No. 1 | United SB, Keelung | 11/1992 | in service (2019) |
Technical data
| Displacement standard, t | 785 |
|---|---|
| Displacement full, t | 1125 |
| Length, m | 52.3 pp 58.8 oa |
| Breadth, m | 9.60 |
| Draught, m | 4.50 |
| No of shafts | 2 |
| Machinery | 2 Yanmar T260-ET diesels |
| Power, h. p. | 3000 |
| Max speed, kts | 16 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1500(12) |
| Armament | none |
| Electronic equipment | 2x Furuno radars |
| Complement | 25 |
Graphics

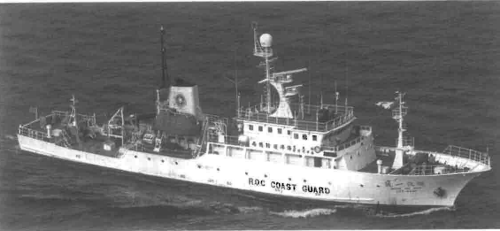

Shun Hu 1 2006
Project history
Large unarmed patrol ship.
Modernizations
None.
Naval service
No significant events.
