PP10028 patrol boats (2005-)
PP10028 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| PP10028 | Lung-Teh SB, Dong Shan | 2005 | in service (2019) | ||||
| PP10029 | Lung-Teh SB, Dong Shan | 2005 | in service (2019) | ||||
| PP10031 | Lung-Teh SB, Dong Shan | 2005 | in service (2019) | ||||
| PP10032 | Chung Fu, Kaohsiung | 2010 | in service (2019) | ||||
| PP10033 | Chung Fu, Kaohsiung | 2010 | in service (2019) | ||||
| PP10035 | Chung Fu, Kaohsiung | 2010 | in service (2019) | ||||
| PP10037 | Chung Fu, Kaohsiung | 2010 | in service (2019) | ||||
| PP10038 | Chung Fu, Kaohsiung | 2010 | in service (2019) | ||||
| PP10039 | Chung Fu, Kaohsiung | 2010 | in service (2019) | ||||
| PP10050 | Chung Fu, Kaohsiung | 2010 | in service (2019) | ||||
| PP10051 | Chung Fu, Kaohsiung | 2013-17 | in service (2019) | ||||
| PP10052 | Chung Fu, Kaohsiung | 2013-17 | in service (2019) | ||||
| PP10053 | Chung Fu, Kaohsiung | 2013-17 | in service (2019) | ||||
| PP10055 | Chung Fu, Kaohsiung | 2013-17 | in service (2019) | ||||
| PP10056 | Chung Fu, Kaohsiung | 2013-17 | in service (2019) | ||||
| PP10057 | Chung Fu, Kaohsiung | 2013-17 | in service (2019) | ||||
| PP10059 | Chung Fu, Kaohsiung | 2013-17 | in service (2019) | ||||
| PP10060 | Chung Fu, Kaohsiung | 2013-17 | in service (2019) | ||||
| PP10061 | Chung Fu, Kaohsiung | 2013-17 | in service (2019) | ||||
| PP10062 | Chung Fu, Kaohsiung | 2013-17 | in service (2019) | ||||
| PP10063 | Chung Fu, Kaohsiung | 2013-17 | in service (2019) | ||||
| PP10065 | Chung Fu, Kaohsiung | 2013-17 | in service (2019) | ||||
| PP10066 | Chung Fu, Kaohsiung | 2018 | in service (2019) | ||||
| PP10068 | Chung Fu, Kaohsiung | 2019-23 | building (2019) | ||||
| PP10069 | Chung Fu, Kaohsiung | 2019-23 | building (2019) | ||||
| PP10070 | Chung Fu, Kaohsiung | 2019-23 | building (2019) | ||||
| PP10071 | Chung Fu, Kaohsiung | 2019-23 | building (2019) | ||||
| PP10072 | Chung Fu, Kaohsiung | 2019-23 | building (2019) | ||||
| PP10073 | Chung Fu, Kaohsiung | 2019-23 | building (2019) | ||||
| PP10075 | Chung Fu, Kaohsiung | 2019-23 | building (2019) | ||||
| PP10077 | Chung Fu, Kaohsiung | 2019-23 | building (2019) |
Technical data
| Displacement standard, t | 95 |
|---|---|
| Displacement full, t | 118 |
| Length, m | 34.3 |
| Breadth, m | 7.00 |
| Draught, m | 1.50 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 16V4000 M70 diesels |
| Power, h. p. | 6220 |
| Max speed, kts | 34 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1400(20) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | 2x Furuno radars |
| Complement | 12 |
Graphics

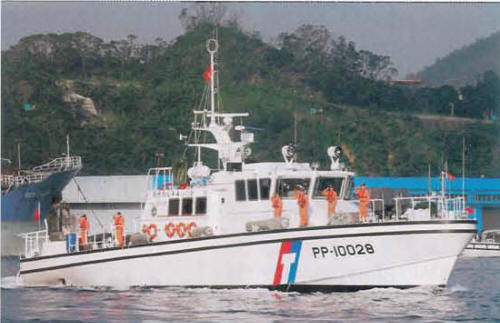

PP10028 2008
Project history
Aluminium construction.
Modernizations
None.
Naval service
No significant events.
