PP10025 patrol boats (2002)
PP10027 2009
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| PP10025 | Chung Hsin SBC, Kaohsiung | 2002 | in service (2019) | ||||
| PP10026 | Chung Hsin SBC, Kaohsiung | 2002 | in service (2019) | ||||
| PP10027 | Chung Hsin SBC, Kaohsiung | 2002 | in service (2019) |
Technical data
| Displacement standard, t | 103 |
|---|---|
| Displacement full, t | 120 |
| Length, m | 29.5 pp 34.3 oa |
| Breadth, m | 7.00 |
| Draught, m | 1.70 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 16V4000 M70 diesels |
| Power, h. p. | 6200 |
| Max speed, kts | 34 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1400(20) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | 2x Furuno radars |
| Complement | 12 |
Graphics

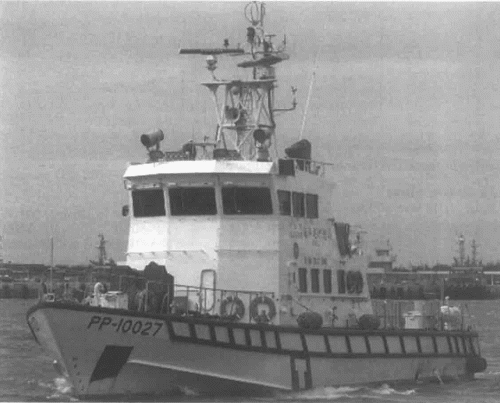

PP10027 2009
Project history
Steel and aluminium construction.
Modernizations
None.
Naval service
No significant events.
