PP10001 patrol boats (1992-2000)
PP10017 2001
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| PP10001 | Chung Hsin SBC, Kaohsiung | 1992 | stricken 2010s | ||||
| PP10002 | Chung Hsin SBC, Kaohsiung | 1992 | stricken 2010s | ||||
| PP10005 | Chung Hsin SBC, Kaohsiung | 1994 | stricken 2010s | ||||
| PP10006 | Chung Hsin SBC, Kaohsiung | 1994 | stricken 2010s | ||||
| PP10007 | Chung Hsin SBC, Kaohsiung | 1995 | stricken 2010s | ||||
| PP10008 | Chung Hsin SBC, Kaohsiung | 1995 | stricken 2010s | ||||
| PP10009 | Chung Hsin SBC, Kaohsiung | 1995 | stricken 2010s | ||||
| PP10010 | Chung Hsin SBC, Kaohsiung | 1995 | stricken 2010s | ||||
| 12.2000- 海成 [Hai Cheng] | PP10011, 12.2000- no number | Chung Hsin SBC, Kaohsiung | 2000 | Customs 12.2000, in service (2018) | |||
| 12.2000- 海恩 [Hai En] | PP10013, 12.2000- no number | Chung Hsin SBC, Kaohsiung | 2000 | Customs 12.2000, in service (2018) | |||
| 12.2000- 海清 [Hai Ching] | PP10015, 12.2000- no number | Chung Hsin SBC, Kaohsiung | 2000 | Customs 12.2000, in service (2018) | |||
| 12.2000- 海良 [Hai Liang] | PP10016, 12.2000- no number | Chung Hsin SBC, Kaohsiung | 2000 | Customs 12.2000, in service (2018) | |||
| PP10017 | Chung Hsin SBC, Kaohsiung | 2000 | stricken 2018 | ||||
| PP10018 | Chung Hsin SBC, Kaohsiung | 2000 | stricken 2018 | ||||
| PP10019 | Chung Hsin SBC, Kaohsiung | 2000 | in service (2019) | ||||
| PP10020 | Chung Hsin SBC, Kaohsiung | 2000 | in service (2019) | ||||
| PP10022 | Chung Hsin SBC, Kaohsiung | 2000 | in service (2019) | ||||
| PP10023 | Chung Hsin SBC, Kaohsiung | 2000 | in service (2019) |
Technical data
| Displacement standard, t | 103 |
|---|---|
| Displacement full, t | 140 |
| Length, m | 30.5 pp 34.3 oa |
| Breadth, m | 6.80 |
| Draught, m | 1.60 |
| No of shafts | 2 |
| Machinery | PP10001-10010: 2 MTU396 diesels others: 2 MTU 16V4000 M70 diesels |
| Power, h. p. | 6200 |
| Max speed, kts | PP10001-10010: 30 others: 34 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1400(20) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | 2x Furuno radars |
| Complement | 12 |
Graphics

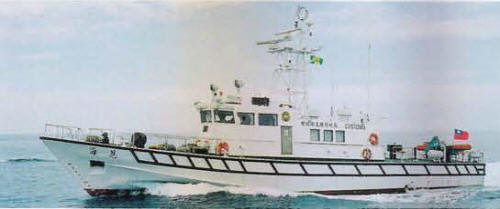

Hai Cheng 2000

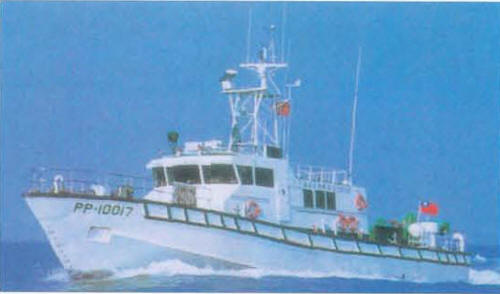

PP10017 2001
Project history
Aluminium construction.
Modernizations
None.
Naval service
In December 2000 four boats were transferred to Customs.
