PAO HSING patrol ships (1980-1986)

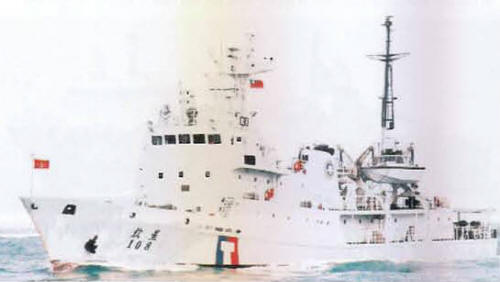

Chin Hsing 2008

Ships


Name No Yard No Builder Laid down Launched Comm Fate
寶星 [Pao Hsing] 1/2000- CG107   China SB, Keelung   1979 1980 Coast Guard 1/2000, deleted 3/2008
欽星 [Chin Hsing] 1/2000- CG108   China SB, Keelung   26/12/1984 23/5/1985 Coast Guard 1/2000, deleted 6/2010
德星 [Teh Hsing] 1/2000- CG109   China SB, Keelung   1986 11/1986 Coast Guard 1/2000, deleted 12/2014


Technical data


Displacement standard, t550
Displacement full, t

694

Length, m

60.8

Breadth, m

7.80

Draught, m

2.10

No of shafts

2

Machinery

2 MAN 12V 25/30 diesels

Power, h. p.

7200

Max speed, kts

24

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 x 1 - 40/60 Mk 3, 2 x 1 - 20/68 T75

Electronic equipment

2x JRC radars

Complement

40



Graphics


<i>Chin Hsing </i>2008
Chin Hsing 2008


Ship project history


A flush-decked design resembling South Korean Coast Guard "Sea Whale" design, but somewhat smaller.

Modernizations


1990s, all: - 1 x 1 - 40/60, 2 x 1 - 20/68; + 2 x 1 - 12.7/90

Naval service


No significant events.
