KINMEN patrol ships (2008)

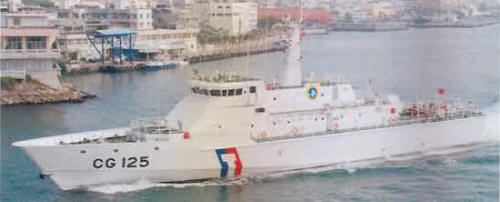

Lienchiang 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| 金門 [Kinmen] | CG123 | Chung Hsin SBC, Kaohsiung | 7.7.2006 | 10.5.2007 | 24.2.2008 | in service (2019) | |
| 連江 [Lienchiang] | CG125 | Chung Hsin SBC, Kaohsiung | 7.7.2006 | 3.5.2007 | 24.2.2008 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 688 |
| Length, m | 57.4 pp 65.1 oa |
| Breadth, m | 11.7 |
| Draught, m | 3.10 |
| No of shafts | 4 waterjets |
| Machinery | 4 MTU 16V4000 M90 diesels |
| Power, h. p. | 13080 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 4600(12) |
| Armament | 1 x 1 - 20/68 T75 |
| Electronic equipment | 2x Furuno radars |
| Complement | 38 |
Standard scale images
Kinmen 2010
Graphics
Lienchiang 2008
Project history
Steel and aluminum construction.
Modernizations
None.
Naval service
No significant events.
